1400 1972
1400A 1979
1400m 2015
|
Names |
pr. 1400: 506 pr. 1400M: 508 511 521, 522 pr. 1400ME 531, 532 535-538 541 546 550 - 555 568 - 571 579 582 589 599 |
|
Builders |
More, Feodosiya, USSR: 506, 508, 511, 521, 522, 531, 532, 535 - 538, 541, 546, 550-555, 568 - 571, 579, 582, 589, 599 |
|
Commissioned |
1971: 506 1974: 508 1975: 511, 521, 522, 531 1976: 532, 535 1977: 536, 537 1979: 538, 541 1980: 546, 550 - 554 1984: 555, 568, 569 1985: 570, 571, 579, 582 1989: 589, 599 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
late 1990s: 550, 553, 569, 570 2001: 506, 511, 521 2013: 535, 536, 551, 554, 571, 582 2018: 522 in service (2019): 508, 531, 532, 537, 538, 541, 546, 552, 555, 568, 579, 589, 599 |
|
Displacement standard, t |
pr. 1400, 1400M: 36 pr. 1400ME: 37 |
|
Displacement full, t |
40 |
|
Length, m |
23.8 |
|
Breadth, m |
5.15 |
|
Draught, m |
1.00 |
|
No of shafts |
2 |
|
Machinery |
pr. 1400: 2 M-401 diesels pr. 1400M: 2 M-401B diesels pr. 1400ME: 2 M-401BT diesels |
|
Power, h. p. |
2000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
pr. 1400, 1400ME: 450(13) pr. 1400M: 400(12) |
|
Armament |
pr. 1400: 1 x 2 - 14.5/89 or 1 x 2 - 12.7/79 pr. 1400M: 1 x 2 - 12.7/79 or 1 x 2 - 14.5/89 or (1 x 2 - 14.5/89, 1 x 2 - 12.7/79) pr. 1400ME: 1 x 2 - 12.7/79 or 2 x 2 - 12.7/79 or 1 x 2 - 14.5/89 or 2 x 2 - 14.5/89 |
|
Sensors |
Lotsiya or Liman or MR-241 Pechora-1 radar |
|
Complement |
9 |
Project history: Soviet project 1400, 1400M and 1400ME patrol boats.
Modernizations: None.
Naval service: No significant events.

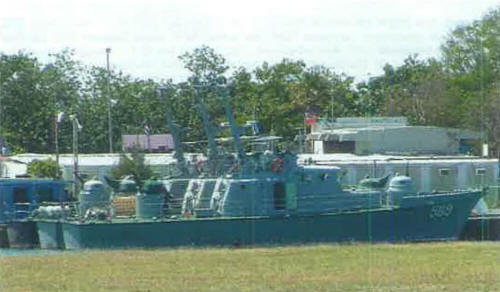

589 2006
