CS11 1945
|
Names |
CS11, 12 (ex-CG83316, 83317), 1945- CG11, 12 CS13, 14 (ex-CG83350, 83351), 1945- CG13, 14 CS21 - 23 (ex-CG83384-83386), 1945- CG21-23 CG24 (ex-CG83395), 1945- GC24 CS31 - 34 (ex-C56189-56192), 1945- GC31-34 |
|
Builders |
Wheeler, Brooklyn, USA |
|
Commissioned |
1942 // 3.1943: CS11 - 14, 21 - 23 1943 // 3.1943: CS24, 31 - 34 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1960s: GC12, 21 - 24, 31 1976: GC11, 13, 14, 32-34 |
|
Displacement standard, t |
45 trials |
|
Displacement full, t |
|
|
Length, m |
25.3 |
|
Breadth, m |
4.88 |
|
Draught, m |
1.37 |
|
No of shafts |
2 |
|
Machinery |
2 petrol engines |
|
Power, h. p. |
1200 |
|
Max speed, kts |
20.5 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 20/70 Mk 4, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 4 DCR |
| Electronic equipment | many boats: SO radar, sonar |
|
Complement |
10 |
Project history: Former USCG/USN 83ft-type patrol launches, transferred to Cuba by lend-lease 8 launches from USCG and 4 from US Navy. 10 boats were transferred at Havana 22.3.1943, two more 24.3.1943. Data about full correlation of American numbers with Cuban are not present, since in Cuban Navy they were renamed depending on tactical assuming, but former USN boats received numbers CS31-34.
Modernizations: None.
Naval service: Right after war all boats were transferred to Coast Guard, according to abbreviation replacement on GC.

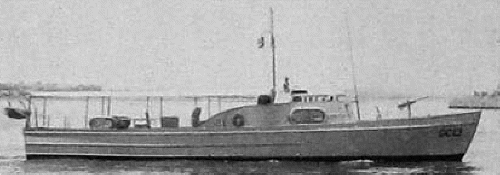

GC11 1951
