Habana 1950
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Oriente (ex-SC1000) | GC104 | Dingle Boat, St. Paul, USA | 4.1942 | 22.10.1942 | 5.1943 // 7.1947 | deleted 1976 | |
| Camaguey (ex-SC1001) | GC105 | Dingle Boat, St. Paul, USA | 5.1942 | 5.11.1942 | 3.1943 // 7.1947 | lost 1961? | |
| Las Villas (ex-SC1290) | GC106 | W. A. Robinson, Ipswich, USA | 8.1942 | 16.3.1943 | 4.1943 // 6.1947 | deleted 1976 | |
| Habana (ex-SC1291) | GC107 | W. A. Robinson, Ipswich, USA |
9/1942 |
30.3.1943 | 5.1943 // 6.1947 | deleted 1976 | |
| Pinar del Río (ex-SC1301) | GC108 | Perkins & Vaughan, Wickford, USA | 9.1942 | 15.5.1943 | 8.1943 // 8.1947 | deleted 1976 |
|
Displacement standard, t |
121 |
|
Displacement full, t |
136 |
|
Length, m |
32.8 wl 33.8 oa |
|
Breadth, m |
5.50 |
|
Draught, m |
2.00 full load |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
1000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil 18 |
| Endurance, nm(kts) | 1500 (12) |
|
Armament |
1 x 1 - 40/60 Mk 3, 3 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR (34) |
|
Electronic equipment |
SF or SO or SU or SCR-517A or SW-1C radar, QC sonar |
| Complement | 27 |
Project history: Former USN 110ft submarine chasers.
Modernizations: None.
Naval service: Fate of Camaguey is unknown.

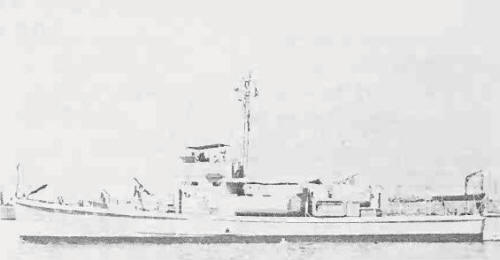

Habana
