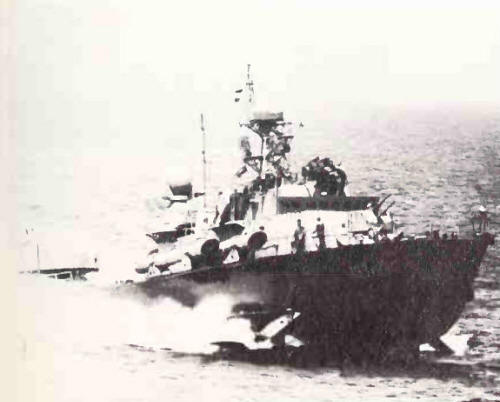

101 fast attack hydrofoil (torpedo) (1979-1983)
101 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 101 | 815 | Vladivostok SYd, USSR | 2.1979 | stricken 1992 | |||
| 102 | 816 | Vladivostok SYd, USSR | 2.1979 | stricken 1992 | |||
| 108 | 817 | Vladivostok SYd, USSR | 2.1980 | stricken 1992 | |||
| 112 | 818 | Vladivostok SYd, USSR | 2.1980 | stricken 1996 | |||
| 130 | 819 | Vladivostok SYd, USSR | 2.1981 | stricken 1996 | |||
| 165 | 820 | Vladivostok SYd, USSR | 2.1981 | stricken 1996 | |||
| 178 | 821 | Vladivostok SYd, USSR | 1.1983 | stricken 1996 | |||
| 180 | 822 | Vladivostok SYd, USSR | 1.1983 | stricken 1996 | |||
| 193 | 823 | Vladivostok SYd, USSR | 11.1983 | stricken 1996 |
|
Displacement standard, t |
218 |
|
Displacement full, t |
250 |
|
Length, m |
39.5 |
|
Breadth, m |
7.5 wl 13.6 foil |
|
Draught, m |
1.64 hull 3.24 foil |
|
No of shafts |
3 |
|
Machinery |
3 M-504B diesels |
|
Power, h. p. |
15000 |
|
Max speed, kts |
44 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1450(14) |
|
Armament |
1 x 2 - 57/50 AK-725, 1 x 2 - 25/82 2M-3M, 4 - 533 TT, 2 DCR (10) |
|
Sensors |
MR-102 Baklan, MR-103 Bars, MR-206 radars, Dozor-1 CCS |
|
Complement |
25 |
Project history: Soviet torpedo hydrofoils of export project 206ME.
Modernizations: None.
Naval service: No significant events.
1984
