Velebit 2000
|
Names |
P01 Velebit (ex-Ñî÷à [Soča]) |
|
Builders |
BSO Split: P01 |
|
Completed |
1985 // 1996: P01 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2003: P01 |
|
Displacement standard, t |
|
|
Displacement normal, t |
88 / 99 |
|
Length, m |
20.9 |
|
Breadth, m |
2.70 |
|
Draught, m |
4.42 molded depth |
|
No of shafts |
1 |
|
Machinery |
1 diesel-generator, 2 Koncar electric motors |
|
Power, h. p. |
140 / 49 |
|
Max speed, kts |
8 / 11 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 500(8) / 135(3) |
|
Armament |
6 500kg mines or 4 R1 swimmer delivery vehicles |
| Electronic equipment | radar, PP-10, PSU-1-2 sonars |
|
Complement |
4 + 6 swimmers |
| Diving depth operational, m | 105 |
Project history: Yugoslavian design, M-100D type. Fitted with exit/re-entry chambers for swimmers. Designed to defend approaches to small shallow waters harbours. Soča was captured in 1991 during breakup of Yugoslavia. Building yard at Split added a section incorporating a generator set. Modified submarine was relaunched in September 1993.
Modernizations: None.
Naval service: No significant events.

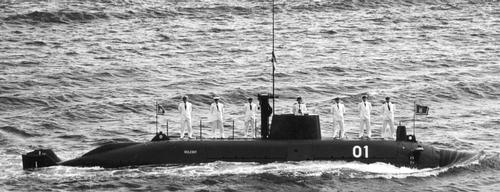

Velebit 1997
