CROATIAN NAVY (CROATIA)

MINE WARFARE SHIPS

KORČULA inshore minehunter (2007)

Name No Yard No Builder Laid down Launched Comp Fate
Korčula 51   Greben, Vela Luka   22.4.2006 20.4.2007 in service (2020)



Displacement standard, t



Displacement full, t

173

Length, m

25.7

Breadth, m

6.80

Draught, m

2.60

No of shafts

2 azipods

Machinery

2 MTU 8V183 TE62 diesels

Power, h. p.

1000

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)

1000(9)

Armament

1 x 1 - 20/90 M-71, Super Sea Rover USV, MDL-3 mechanical minesweeping gear

Electronic equipment Kelvin Hughes 5000 radar, Reson, Klein 2000 sonars

Complement

40

Project history: Project MPMB. Construction began in 1996 but program was delayed by the lack of funding. GRP hull with fishing craft form.

Modernizations: None.

Naval service: No significant events.

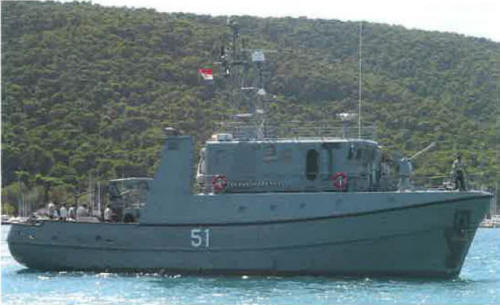

Korčula 2007
