CROATIAN NAVY (CROATIA)

COASTAL FORCES

OMIŠ patrol craft (2018-)

Name No Yard No Builder Laid down Launched Comp Fate
Omiš 31   Brodosplit, Split 9.2015 3.6.2017 7.12.2018 in service (2020)
ii 32   Brodosplit, Split     2021 building (2020)
iii 33   Brodosplit, Split     2022 ordered (2020)
iv 34   Brodosplit, Split     2022 ordered (2020)
v 35   Brodosplit, Split     2023 ordered (2020)




Displacement standard, t

220

Displacement full, t



Length, m

43.3

Breadth, m



Draught, m



No of shafts

2

Machinery

2 Caterpillar diesels

Power, h. p.

6860

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

1 x 1 Strela-3M SAM (4 9K34), 1 x 1 - 30/80 SMASH, 2 x 1 - 12.7/90

Electronic equipment

2x radars

Complement

16

Project history: Project OOB-31, intended for patrol, search and rescue and EEZ protection duties. Serve in Coast Guard.

Modernizations: None.

Naval service: No significant events.

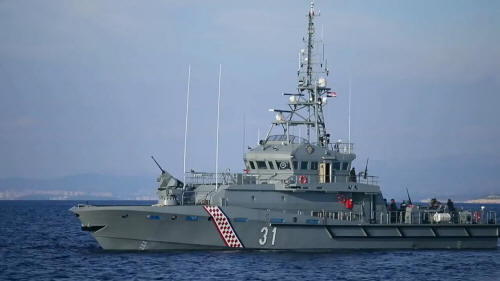

Omiš 2018
