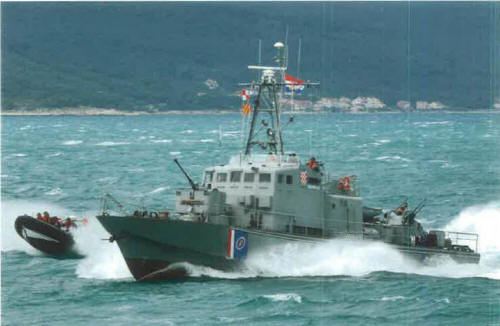

Novigrad 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Novigrad (ex-Биоково [Biokovo]) | 61, 2009- 01 | Tito, Kraljevica | 18.12.1980 | 1981 // 1991 | Coast Guard 2009, in service (2020) | ||
| Šolta (ex-Мукос [Mukos]) | 62, 2009- 02 | Tito, Kraljevica | 11.11.1982 | 1983 // 1991 | Coast Guard 2009, in service (2020) | ||
| Cavtat (ex-Цер [Cer]) | 63, 2009- 03 | Tito, Kraljevica | 27.9.1984 | 1984 // 1991 | Coast Guard 2009, in service (2020) | ||
| Hrvatska Kostajnica (ex-Дурмитор [Durmitor]) | 64, 2009- 04 | Tito, Kraljevica | 10.1.1985 | 1985 // 1991 | Coast Guard 2009, in service (2020) |
|
Displacement standard, t |
125 |
|
Displacement full, t |
142 |
|
Length, m |
29.3 pp 32.0 oa |
|
Breadth, m |
6.68 |
|
Draught, m |
1.76 hull 2.41 max |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA4200GDS diesels |
|
Power, h. p. |
6000 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil 16 |
| Endurance, nm(kts) | 400(20) |
|
Armament |
1 x 4 Fasta-4M SAM (8 9K32), 1 x 1 - 40/70 Bofors 315, 1 x 4 - 20/90 M-75, 8 DC |
|
Electronic equipment |
Decca 1216C radar, SQS-3D/SF sonar |
| Complement | 19 |
Project history: Yugoslavian Type140, built as replacement for 'Type 131' in commission with naval border detachments. Single 20mm mount was replaced by quadruple before recommission. Additional outboard electric motor for quiet operation, capable to make 6kts speed.
Modernizations: early-2010s, all: - 1 x 4 - 20/90; + 2 x 1 - 12.7/90
Naval service: No significant events.
Novigrad 2009
