L'Éléphant 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| L'Éléphant | Dubigeon, Nantes, France | 1974 | 1975 | 2.2.1977 | sold 2000 |
|
Displacement standard, t |
750 |
|
Displacement full, t |
1330 |
|
Length, m |
68.0 pp 80.0 oa |
|
Breadth, m |
13.0 |
|
Draught, m |
3.00 max 2.50 hull |
|
No of shafts |
2 |
|
Machinery |
2 SACM 195 V12 CSHR diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(13) |
|
Armament |
2 x 1 - 40/60 Mk 7, 2 x 1 - 81/12 mortars, 2 x 1 - 12.7/90 |
|
Electronic equipment |
DRBN-32 radar |
|
Military load |
350t of cargo, 138 troops, 12 vehicles, helicopter deck |
|
Complement |
39 |
Project history: French BATRAL-E class medium landing ship.
Modernizations: None.
Naval service: No significant events.

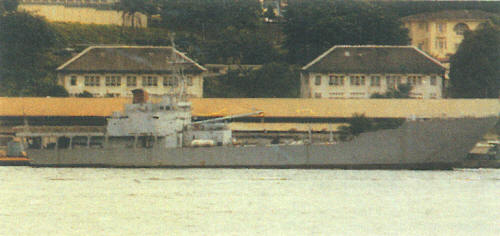

L'Éléphant 1994
