Colonel Alfonso Monge 2000
|
Names |
SP821 Colonel Alfonso Monge (ex-Point Hope, ex-WPB82302), 2001- 82-1 Colonel Alfonso Monge SP822 Santa Maria (ex-Point Camden), 2001- 82-2 Santa Maria SP823 Juan Rafael Mora (ex-Point Chico, ex-WPB82339), 2001- 82-3 Juan Rafael Mora SP824 Pancha Carrasco (ex-Point Bridge, ex-WPB82338), 2001- 82-4 Pancha Carrasco |
|
Builders |
USCG Yard, Curtis Bay, USA: SP821-824 |
|
Commissioned |
1960 // 1991: SP821 1970 // 1999: SP822 1962 // 2001: SP823, 824 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
2002: 82-1 in service (2019): 82-2 - 82-4 |
|
Displacement standard, t |
64 |
|
Displacement full, t |
69 |
|
Length, m |
25.3 |
|
Breadth, m |
5.23 |
|
Draught, m |
1.95 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3412V12 diesels |
|
Power, h. p. |
1600 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil 6 |
| Endurance, nm(kts) | 1500(8) |
|
Armament |
2 x 1 - 12.7/90 |
| Electronic equipment | SPS-73 radar |
|
Complement |
8 |
Project history: Former USCG Point-class cutter.
Modernizations: None.
Naval service: No significant events.

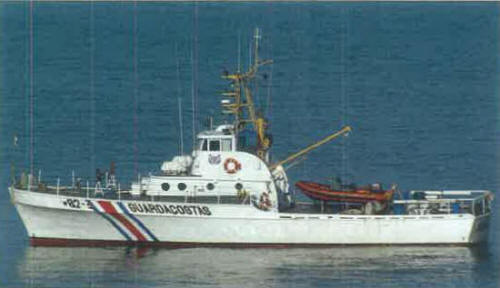

Juan Rafael Mora 2010
© Ivan Gogin, 2019
