Te Kukupa 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Te Kukupa | Transfield ASI, South Coogie, Australia | 5.6.1988 | 27.1.1989 | 1.9.1989 | in service (2020) |
|
Displacement standard, t |
148 |
|
Displacement full, t |
165 |
|
Length, m |
28.6 pp 31.5 oa |
|
Breadth, m |
8.10 |
|
Draught, m |
2.12 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516 Phase II diesels |
|
Power, h. p. |
2820 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil 28 |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
1 x 1 - 12.7/90 (fitted for) |
|
Electronic equipment |
Furuno 1011 radar |
|
Complement |
17 |
Project history: Australian ASI315 design. Carries 5m aluminum boarding boat. Never had central waterjet.
Modernizations: None.
Naval service: No significant events.

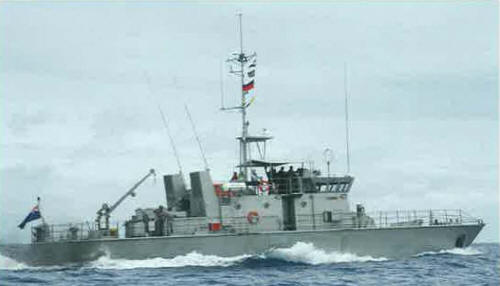

Te Kukupa 2007
