| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| L'Intrépide, 6.1983- Marien N'Gouabi | P601 | Bazán, Cadiz, Spain | 10.11.1982 | out of service ~2005 | |||
| Le Vaillant, 6.1983- Les Trois Glorieuses | P602 | Bazán, Cadiz, Spain | 1.1983 | out of service ~2005 | |||
| Le Terrible, 6.1983- Les Maloango | P603 | Bazán, Cadiz, Spain | 3.1983 | out of service ~2005 |
|
Displacement standard, t |
125 |
|
Displacement full, t |
138 |
|
Length, m |
30.6 pp 32.7 oa |
|
Breadth, m |
6.15 |
|
Draught, m |
1.55 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V538 TB92 diesels |
|
Power, h. p. |
6120 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(17) |
|
Armament |
1 x 1 - 40/70 Breda-Bofors 107, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Raytheon RM1220/6X8 radar |
|
Complement |
19 |
Project history: Spanish Piranha class. Ordered in 1980.
Modernizations: None.
Naval service: No significant events.

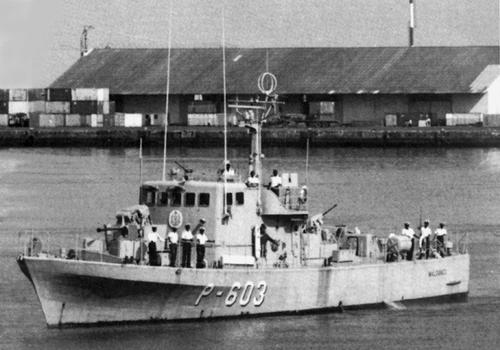

Les Maloango 1990
