Names |
SS20 Intrépido SS21 Indomable SS23 Roncador SS24 Quitasueño |
|
Builders |
COSMOS, Livorno, Italy: SS20, 21, 23, 24 |
|
Commissioned |
1973: SS20, 21 1974: SS23, 24 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1981: SS23, 24 2013: SS20, 21 |
|
Displacement standard, t |
|
|
Displacement normal, t |
58 / 70 |
|
Length, m |
23.0 |
|
Breadth, m |
2.00 |
|
Draught, m |
4.00 |
|
No of shafts |
1 |
|
Machinery |
1 diesel-generator, 1 electric motor |
|
Power, h. p. |
300 |
|
Max speed, kts |
8.5 / 7 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1200(7) / 60(7) |
|
Armament |
6 Mk 21 mines (300kg warhead), 8 Mk 11 mines (50kg warhead), 2 submarine vehicles |
| Electronic equipment | none |
|
Complement |
5 + 8 combat swimmers |
| Diving depth operational, m | 150 |
Project history: Italian SX506 type. 8 fully equipped combat swimmers can use two submarine vehicles supported by a fixed system on lower part of the hull, one on each side. They were served by special drydock/tender Mayor Jaime Arias.
Modernizations: None.
Naval service: No significant events.

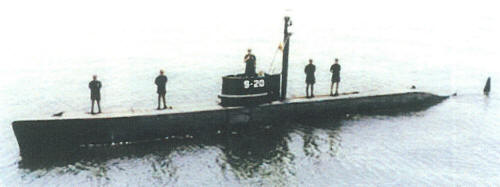

Intrépido 2000
