Arauca 1960
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
Ríohacha |
CF35, 1995- PF135 |
Union Industrial de Barranquilla |
1955 |
9/1956 |
stricken 2017-18 |
||
|
Leticia |
CF36, 1995- PF136 |
Union Industrial de Barranquilla |
1955 |
9/1956 |
hospital ship ~1970 |
||
|
Arauca |
CF37, 1995- PF137 |
Union Industrial de Barranquilla |
1955 |
9/1956 |
in service (2019) |
|
Displacement standard, t |
170 |
|
Displacement full, t |
184 |
|
Length, m |
47.25 pp 49.8 oa |
|
Breadth, m |
8.23 |
|
Draught, m |
1.00 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar diesels |
|
Power, h. p. |
916 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(12) |
|
Armament |
2 x 1 - 76/50 Mk 26, 4 x 1 - 20/70 Mk 10 |
|
Complement |
43 |
Project history: Small river gunboats for Río Putumayo. Don't have the radar.
Modernizations: 2010s, Arauca: - 2 x 1 - 76/50; + 1 x 1 - 40/60 Mk 3, 4 x 1 - 12.7/90, radar
Naval service: Leticia, serving as hospital ship and disarmed, kept the hull number of gunboat.

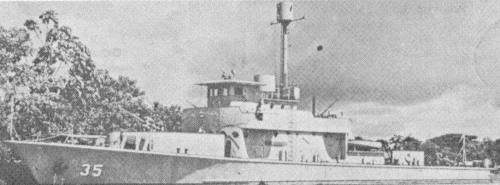

Río Hacha 1966

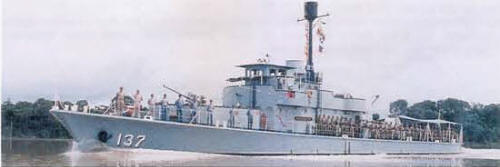

Arauca 1991
