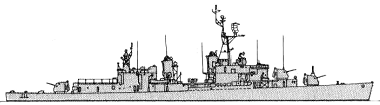

Santander 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Caldas (ex-Willard Keith) | D02 | 9024 | Bethlehem, San Pedro, USA | 3/1944 | 29.8.1944 | 12/1944 // 1.7.1972 | discarded 1977 |
| Santander (ex-Waldron) | D03 | 384 | Federal, Kearny, USA | 11/1943 | 26.3.1944 | 6/1944 // 30.10.1973 | discarded 1986 |
|
Displacement standard, t |
2345 |
|
Displacement full, t |
3210 |
|
Length, m |
112.5 wl 114.8 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.30 |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
33.4 |
|
Fuel, t |
oil 497 |
|
Endurance, nm(kts) |
3300 (20) |
|
Armament |
D02: 3 x 2 - 127/38 Mk 12, 2 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT, 2 x 24 Hedgehog Mk 11 ASWRL D03: 3 x 2 - 127/38 Mk 38, 2 x 3 - 324 Mk 32 TT, 2 x 24 Hedgehog Mk 11 ASWRL, 1 helicopter (BO-105) |
|
Electronic equipment |
D02: SPS-6, SPS-10, Mk 25, Mk 34 radars, QHB sonar, WLR-1, ULQ-6 ECM suites D03: SPS-10, SPS-40, Mk 25 radars, SQS-30 sonar, WLR-1, ULQ-6 ECM suites |
|
Complement |
274 |
Project history: Former USN Allen M. Sumner class destroyers. Santander was modernized under FRAM II programme under the USN flag.
Modernizations: None.
Naval service: No significant events.

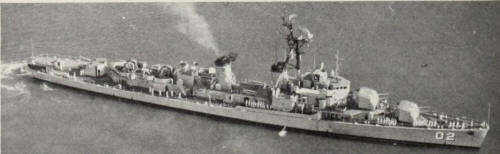

Caldas 1974

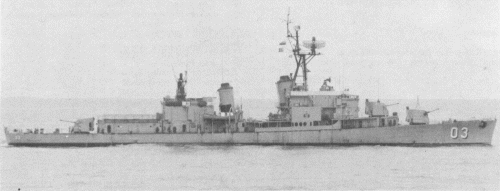

Santander 1975
