PEDRO GUAL patrol craft (1964)
|
Names |
AN204 Pedro Gual AN205 Esteban Jaramillo AN206 Carlos E. Restrepo |
|
Builders |
Schurenstedt KG, Barden Fleth, West Germany: AN204-206 |
|
Commissioned |
1964: AN204-206 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1984: AN204, 205 1986: AN206 |
|
Displacement standard, t |
|
|
Displacement full, t |
85 |
|
Length, m |
32.9 |
|
Breadth, m |
5.50 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 Maybach diesels |
|
Power, h. p. |
2450 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
|
Complement |
Project history: Fast patrol craft.
Modernizations: None.
Naval service: No significant events.

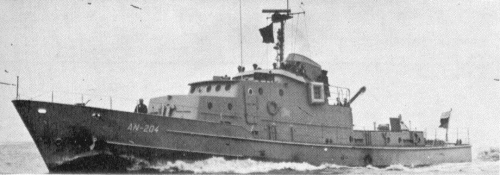

Pedro Gual 1975
