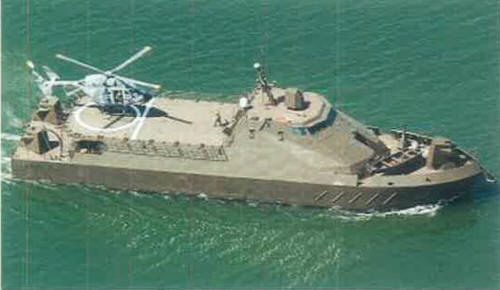

TEFIM. Juan Ricardo Oyola Vera 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| RAF-PI | |||||||
| SSCIM. Senen Alberto Araujo | NF147, 2000- NF607 | Boca Grande, Cartagena | 9.1998 | 19.4.2000 | in service (2019) | ||
| CPCIM. Guillermo Londoño Vargas | NF146, 2000- NF608 | Boca Grande, Cartagena | 6.1998 | 3.2000 | in service (2019) | ||
| RAF-PII | |||||||
| TNCIM. Mario Alonso Villegas | NF610 | COTECMAR, Cartagena | 2003 | in service (2019) | |||
| RAF-PIII | |||||||
| TECIM. Tony Pastrana Contreras | NF611 | COTECMAR, Cartagena | 2004 | in service (2019) | |||
| RAF-PIV | |||||||
| CTCMI. Jorge Moreno Salazar | NF612 | COTECMAR, Cartagena | 2005 | in service (2019) | |||
| TEFIM. Juan Ricardo Oyola Vera | NF613 | COTECMAR, Cartagena | 2006 | in service (2019) | |||
| TECIM. Freddy Alexander Pérez Rodríguez | NF614 | COTECMAR, Cartagena | 2008 | in service (2019) | |||
| TECIM. Edic Cristian Reyes Holguín | NF615 | COTECMAR, Cartagena | 25.3.2009 | in service (2019) | |||
|
Displacement standard, t |
RAF-I, II: 230 RAF-III, IV: 275 |
|
Displacement full, t |
RAF-I, II: 260 RAF-III, IV: 373 |
|
Length, m |
RAF-I, II: 37.2 pp 38.5 oa RAF-III, IV: 40.3 |
|
Breadth, m |
9.50 |
|
Draught, m |
RAF-I, II: 1.00 RAF-III, IV: 1.26 |
|
No of shafts |
RAF-I, II: 2 RAF-III, IV: 2 waterjets |
|
Machinery |
RAF-I, II: 2 General Motors Detroit Diesel diesels RAF-III, IV: 2 MTU diesels |
|
Power, h. p. |
RAF-I, II: 880 RAF-III, IV: 900 |
|
Max speed, kts |
RAF-I, II: 12 RAF-III, IV: 9 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
RAF-III, IV: 2900 |
| Armour | side below wl: 80 |
|
Armament |
RAF-I: 8 x 1 - 12.7/90 RAF-II: 8 x 1 - 12.7/90, 1 x 1 - 40/19 grenade launcher RAF-III: 3 x 1 - 12.7/90, 4 x 1 - 7.6/90, 1 x 1 - 40/19 Mk 19 grenade launcher RAF-IV: 3 x 1 - 12.7/90, 4 x 1 - 7.6/90, 1 x 1 - 40/19 Mk 19 grenade launcher, helicopter deck |
|
Sensors |
RAF-I, II: radar RAF-II, III, IV: radar, e/o system, Jeyur CCS |
|
Complement |
RAF-I, II: 18 + 82 troops RAF-III, IV: 33 + 39 troops |
Project history: Nodriza class, intended to provide afloat logistic support to riverine forces, can carry 4 Piranha class launches.
Modernizations: None.
Naval service: No significant events.
TEFIM. Juan Ricardo Oyola Vera 2008
