OLAYA HERRERA patrol boats (1981-1983)

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Olaya Herrera, 1997- TECIM Jaime E. Cárdenas Gómez	AN21, 1997- GC115, 1999- PM115		Swiftships, Berwick, USA			16.10.1981	in service (2019)
C. N. Rafael del Castillo y Rada	GC102, 1999- PM102		Swiftships, Berwick, USA			28.2.1983	in service (2019)

Displacement standard, t

Displacement full, t

103

Length, m

29.2 pp 32.0 oa

Breadth, m

6.69

Draught, m

2.14

No of shafts

4

Machinery

4 MTU 12V331 TC92 diesels

Power, h. p.

7000

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts) 2400(15)

Armament

1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90

Electronic equipment Raytheon radar, COAR e/o system

Complement
19

Project history: US Swiftships 105ft Commercial Cruiser class.

Modernizations: None.

Naval service: Olaya Herrera was paid off but returned unarmed as part of Customs service and later transferred back to the Coast Guard.

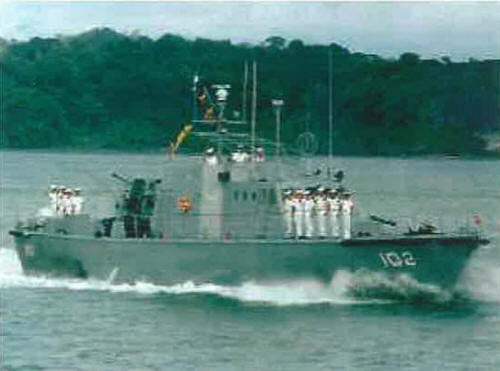

Rafael del Castillo y Rada 1999

COLOMBIAN NAVY (COLOMBIA)

COASTAL FORCES

OLAYA HERRERA patrol boats (1981-1983)

Displacement standard, t
Displacement full, t	103
Length, m	29.2 pp 32.0 oa
Breadth, m	6.69
Draught, m	2.14
No of shafts	4
Machinery	4 MTU 12V331 TC92 diesels
Power, h. p.	7000
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	2400(15)
Armament	1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90
Electronic equipment	Raytheon radar, COAR e/o system
Complement	19
