JORGE SOTO DEL CORVAL patrol craft (1971)

similar Ruissalo 1980

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Jorge Soto del Corval	AN207		Laivateollisuus, Turku, Finland			1971	stricken 1984
Carlos Alban	AN208		Laivateollisuus, Turku, Finland			1971	stricken 1984
Nito Restrepo	AN209		Laivateollisuus, Turku, Finland			1971	stricken 1990

Displacement standard, t

110

Displacement full, t

130

Length, m

33.0

Breadth, m

6.00

Draught, m

1.90

No of shafts

2

Machinery

2 MTU diesels

Power, h. p.

2500

Max speed, kts

17

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

2 x 1 - 20/70 Mk 7

Electronic equipment radar

Complement

Project history: Finnish Ruissalo class without ASW abilities. Customs.

Modernizations: None.

Naval service: No significant events.

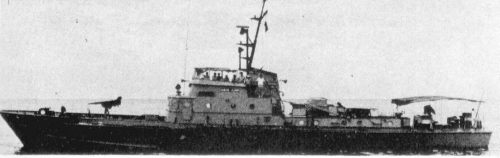

Carlos Alban 1971

COLOMBIAN NAVY (COLOMBIA)

COASTAL FORCES

JORGE SOTO DEL CORVAL patrol craft (1971)

Displacement standard, t	110
Displacement full, t	130
Length, m	33.0
Breadth, m	6.00
Draught, m	1.90
No of shafts	2
Machinery	2 MTU diesels
Power, h. p.	2500
Max speed, kts	17
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	2 x 1 - 20/70 Mk 7
Electronic equipment	radar
Complement
