Names |
LR121, later- LR138, 2010- PF121 Diligente LR122, 2010- PF122 TE Juan Lucio LR123, 2010- PF123 CD Alfonso Vargas LR124, 2010- PF124 CP Fritz Hagale LR125, later- LR139, 2010- PF125 Alberto Restrepo, later- Vengadora LR126, 2010- PF126 Humberto Cortés LR127 Calibio LR128, 2010- PF128 Carlos Galindo LR129 Valerosa LR130 Luchadora |
|
Builders |
Astillero Naval, Cartagena: LR121-130 |
|
Commissioned |
1952: LR121, 123, 124 1953: LR122, 126, 127 1954: LR125, 128-130 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2010: LR127, 129, 130 2017-18: PF121-126, 128 |
|
Displacement standard, t |
|
|
Displacement full, t |
33 |
|
Length, m |
23.2 |
|
Breadth, m |
3.70 |
|
Draught, m |
0.80 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors Detroit Diesel 4-71 diesels |
|
Power, h. p. |
280 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
|
|
Armament |
LR121, 125: 1 x 2 - 12.7/90, 2 x 1 - 7.6/90 LR122-124, 126-130: 2 x 1 - 20/70 Mk 10 or (1 x 1 - 20/70 Mk 10, 4 x 1 - 81/12 M29 mortars) |
|
Complement |
10 |
Project history: Small river patrol boats. No radars.
Modernizations: None.
Naval service: No significant events.

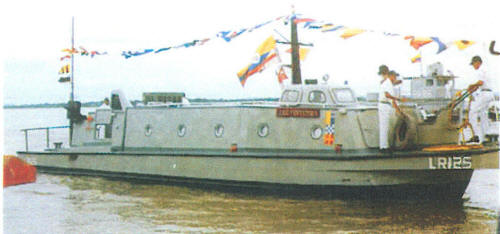

Vengadora 2000
