Albuquerque 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Albuquerque (ex-Welch) | P111, 1992- GC111, 1999- PO111 | Peterson, Sturgeon Bay, USA | 8.8.1967 | 25.7.1968 | 8.9.1969 // 16.5.1983 | stricken 2008 | |
| Quitasueño (ex-Tacoma) | P112, 1992- GC112, 1999- PO112 | Tacoma BB, USA | 24.7.1967 | 13.4.1968 | 14.7.1969 // 16.5.1983 | in service (2019) |
|
Displacement standard, t |
225 |
|
Displacement full, t |
245 |
|
Length, m |
46.9 pp 50.1 oa |
|
Breadth, m |
7.28 |
|
Draught, m |
2.90 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Cummins VT12-875M diesels / 1 General Electric 7LM-1500-PE102 gas turbine |
|
Power, h. p. |
1450 / 12500 |
|
Max speed, kts |
16 / 40 |
|
Fuel, t |
diesel / gas turbine oil 50 |
|
Endurance, nm(kts) |
1700(16) |
|
Armament |
1 x 1 - 76/50 Mk 34, 1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/90 |
|
Electronic equipment |
LN-66 radar |
|
Complement |
25 |
Project history: Former USN Ashville class gumboats, GFC with SPG-50 radar was removed prior to transfer.
Modernizations: 1990s, Albuquerque: - 1 x 1 - 40/60; + helicopter deck for small helicopter
Naval service: Boats were transferred from navy to Coast Guard in 1992.

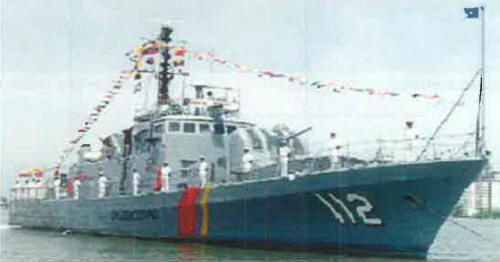

Quitasueño 2000
