PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Yuangzheng 201 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 远征 201 [Yuangzheng 201] | 201 | Wuchang, Wuhan | 2008 | 9.9.2010 | 16.10.2012 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
3800 / 6630 |
|
Length, m |
92.5 |
|
Breadth, m |
10.0 hull |
|
Draught, m |
6.85 |
|
No of shafts |
1 waterjet |
|
Machinery |
diesel-generators, 1 electric motor |
|
Power, h. p. |
|
|
Max speed, kts |
10 / 14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 JL-2 (or 1 - 3 other models for test) SLBM (2), 1 x 4 CruM/SSM/ASuM (VLS, 4), 1 - 650 TT (bow), 1 - 533 TT (bow) |
|
Electronic equipment |
radar, sonars |
|
Complement |
88 + up to 100 civil specialists |
|
Diving depth operational, m |
160 |
Project history: Trials submarine, replacement for Russian-built project 629. SLBM tubes are placed in the sail, VLS for cruising and anti-ship missiles arranged in the forward hull part. Its planned that during wartime this submarine can operate as combat unit with JL-2 missiles.
Modernizations: None.
Naval service: No significant events.
.jpg)

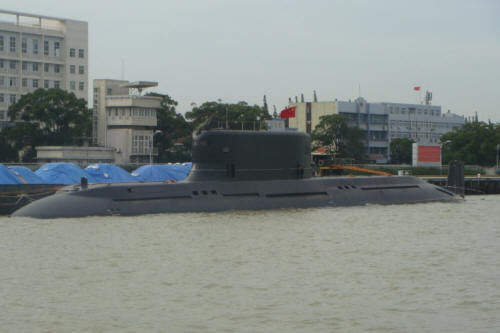

Yuangzheng 201 2012
