PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

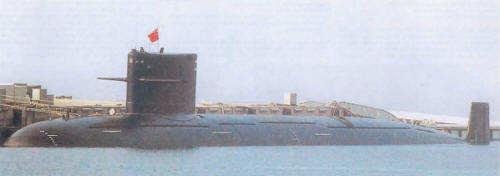

Changzheng 7 2010
| Name | No | Builder | Laid down | Launched | Comp | Fate |
| Type 093 | ||||||
| 长征7号 [Changzheng 7] | 407 | Bohai, Huludao | 24.12.2002 | 12/2006 | in service (2019) | |
| 长征8号 [Changzheng 8] | 408 | Bohai, Huludao | 12/2003 | 8.3.2007 | in service (2019) | |
| Type 093A | ||||||
| 长征9号 [Changzheng 9] | 409 | Bohai, Huludao | 2010 | 2012 | in service (2019) | |
| 长征10号 [Changzheng 10] | 410 | Bohai, Huludao | 2013 | 2015 | in service (2019) | |
| 长征18号 [Changzheng 18] | 418 | Bohai, Huludao | 2017 | in service (2019) | ||
| 长征19号 [Changzheng 19] | 419 | Bohai, Huludao | 2017 | in service (2019) | ||
| Type 093B | ||||||
| 长征15号 [Changzheng 15] | 415 | Bohai, Huludao | 2015 | in service (2019) | ||
| 长征16号 [Changzheng 16] | 416 | Bohai, Huludao | 2015 | in service (2019) | ||
| 长征17号 [Changzheng 17] | 417 | Bohai, Huludao | 2015 | in service (2019) | ||
|
Displacement standard, t |
|
|
Displacement normal, t |
5000 / 6100 |
|
Length, m |
type 093, 093A: 107.0 type 093B: 110.0 |
|
Breadth, m |
11.0 |
|
Draught, m |
7.50 |
|
No of shafts |
type 093, 093A: 1 type 093B: 1 pumpjet |
|
Machinery |
2 sets geared steam turbines, 2 nuclear reactors |
|
Power, h. p. |
20000 |
|
Max speed, kts |
20 / 30 |
|
Fuel, t |
nuclear |
|
Endurance, nm(kts) |
practically unlimited |
|
Armament |
type 093, 093A: 1 x 12 YJ-18 SSM / CJ-10 CruM (VLS, 12 YJ-18 / CJ-10), 6 - 533 TT (bow, 20 (inc. YJ-82 SSM / YJ-83 SSM) or 36 mines) type 093B: 1 x 24 YJ-18 SSM / CJ-10 CruM (VLS, 24 YJ-18 / CJ-10), 6 - 533 TT (bow, 20 (inc. YJ-82 SSM / YJ-83 SSM) or 36 mines) |
|
Electronic equipment |
type 359 radar, H/SQG-4 sonar suite (TSM2233 Eledone, TSM-2255, SQB-2 sonars), H/SQC-207 sonar, Type 921-A (SRW209) ECM suite, CCS |
|
Complement |
100 |
|
Diving depth operational, m |
400 |
Project history: Replacement for the type 091, designed with active Russian assistance. Initially it was planned to limit number of ships in class by 3 in favor of newest type 095, but later it was decided to increase class to 8, including VLS-carrying type 093B. Double-hulled, hull is covered by anechoic tiles. Majority of sources report that type 093A and 093B submarines are equivalent to Improved Los Angeles by noise level or quieter.
Modernizations: None.
Naval service: No significant events.
2007
