PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
CHANGCHENG 321 submarines (project 039G, 2001-2006)
Changcheng 320 2000

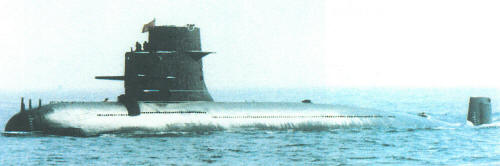

Changcheng 325 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Type 039 | |||||||
| 长城 320 [Changcheng 320] | 320 | Wuhan SY | 1991 | 25.5.1994 | 6/1999 | in service (2019) | |
| Type 039G | |||||||
| 长城 321 [Changcheng 321] | 321 | Wuhan SY | 11.11.1999 | 22.4.2001 | in service (2019) | ||
| 长城 322 [Changcheng 322] | 322 | Wuhan SY | 28.6.2000 | 12/2001 | in service (2019) | ||
| 长城 323 [Changcheng 323] | 323 | Wuhan SY | 5/2002 | 11/2003 | in service (2019) | ||
| 长城 324 [Changcheng 324] | 324 | Wuhan SY | 28.11.2002 | 12/2003 | in service (2019) | ||
| 长城 325 [Changcheng 325] | 325 | Wuhan SY | 3.12.2002 | 2004 | in service (2019) | ||
| Type 039G1 | |||||||
| 长城 314 [Changcheng 314] | 314 | Wuhan SY | 19.5.2003 | 11/2003 | in service (2019) | ||
| 长城 315 [Changcheng 315] | 315 | Wuhan SY | 29.9.2003 | 12/2003 | in service (2019) | ||
| 长城 316 [Changcheng 316] | 316 | Wuhan SY | 28.8.2004 | 2005 | in service (2019) | ||
| 长城 317 [Changcheng 317] | 317 | Wuhan SY | 2.12.2004 | 2005 | in service (2019) | ||
| 长城 326 [Changcheng 326] | 326 | Wuhan SY | 7/2004 | 2006 | in service (2019) | ||
| 长城 327 [Changcheng 327] | 327 | Wuhan SY | 8/2004 | 2006 | in service (2019) | ||
| 长城 328 [Changcheng 328] | 328 | Jiangnan SY, Shanghai | 9/2004 | 2006 | in service (2019) | ||
| 长城 329 [Changcheng 329] | 329 | Jiangnan SY, Shanghai | 11/2004 | 2006 | in service (2019) | ||
|
Displacement standard, t |
|
|
Displacement normal, t |
1700 / 2250 |
|
Length, m |
76.6 |
|
Breadth, m |
8.40 hull |
|
Draught, m |
5.25 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 16V396 SE 83/84 diesel-generators, 1 electric motor |
|
Power, h. p. |
6092 |
|
Max speed, kts |
15 / 22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
/ 330(4) |
|
Armament |
6 - 533 TT (bow, 18, inc. Yin Ji-82 SSM (4 YJ-82) or 24-36 mines) |
|
Electronic equipment |
MRK-50E Kaskad-E radar, H/SQG-4 sonar suite (TSM2233 Eledone, TSM-2255, SQB-2 sonars), Type 921-A (SRW209) ECM suite, CCS |
|
Complement |
60 |
|
Diving depth operational, m |
300 |
Project history: The prototype Changcheng 320 had serious design technical problems that became evident on sea trials, including unsatisfactory underwater performance and high noise levels. Major redesign work led to Type 039G with no stepped sail. Submarines are armed by YJ-82 SSMs and Yu-3 and Yu-4 torpedoes. CY-1 ASW missile was successfully tested on this class.
Modernizations: None.
Naval service: No significant events.
Changcheng 320 1997

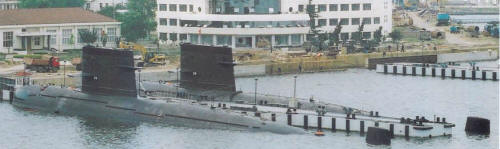

Changcheng 315 and Changcheng 316 2005
