PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Changcheng 119 1960
Changcheng 202 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 长城 119 [Changcheng 119] | 119 | Kiangnan SY | 4/1955 | 3/1956 | 10/1957 | deleted 1981 | |
| 长城 120 [Changcheng 120] | 120 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted 1981 | |||
| 长城 119 [Changcheng 122] | 122 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted 1981 | |||
| 长城 123 [Changcheng 123] | 123 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted 1981 | |||
| 长城 127 [Changcheng 127] | 127 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted 1981 | |||
| 长城 129 [Changcheng 129] | 129 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 131 [Changcheng 131] | 131 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 201 [Changcheng 201] | 132 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 202 [Changcheng 202] | 133 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 203 [Changcheng 203] | 134 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 204 [Changcheng 204] | 135 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 205 [Changcheng 205] | 206 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 206 [Changcheng 206] | 207 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 207 [Changcheng 207] | 208 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 221 [Changcheng 221] | 221 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 241 [Changcheng 241] | 241 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 243 [Changcheng 243] | 243 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 244 [Changcheng 244] | 244 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 265 [Changcheng 265] | 265 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 266 [Changcheng 266] | 266 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted early 1990s | |||
| 长城 270 [Changcheng 270] | 270 | Kiangnan SY // Wuhan SY | 1957-1964 | deleted 1981 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1045 / 1342 |
|
Length, m |
76.0 |
|
Breadth, m |
6.30 |
|
Draught, m |
4.55 |
|
No of shafts |
2 |
|
Machinery |
2 37D diesels / 2 PG-101 electric motors |
|
Power, h. p. |
4000 / 2700 |
|
Max speed, kts |
18.3 / 13.1 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8580(10) / 353(2) |
|
Armament |
earlier boats: 1 x 2 - 25/112 2M-8, 6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) later boats: 6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) |
|
Electronic equipment |
Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite |
|
Complement |
55 |
|
Diving depth operational, m |
170 |
Project history: The USSR supplied components for five submarines to be assembled in Chinese shipyards until eventually the Chinese built the entire submarine. A total of twenty-one entered service, 13 built by Kiangnan SY and 8 by Wuhan SY. Obsolete by the 1980s, six had been stricken by 1989, with the remainder either laid up in reserve or serving as stationary harbour training boats.
Modernizations: 1960s, all earlier boats: - 1 x 2 - 25/112
Naval service: No significant events.

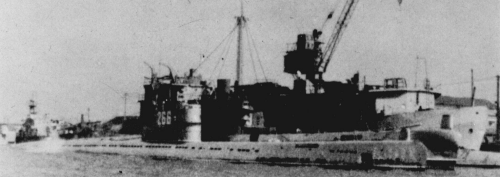

Changcheng 266 1976
