PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
An Tung 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 丹東 [An Tung] (ex-安宅 [Ataka], ex-Nakoso) | Yokohama Co, Japan | 8.1921 | 11.4.1922 | 8.1923 // 8.1945 | deleted 1970s |
|
Displacement standard, t |
886 |
|
Displacement full, t |
1094 |
|
Length, m |
67.1 pp 71.7 oa |
|
Breadth, m |
9.78 |
|
Draught, m |
2.26 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Kampon boilers |
|
Power, h. p. |
1700 |
|
Max speed, kts |
16 |
|
Fuel, t |
coal 235 |
|
Armament |
1 x 1 - 120/45 3-shiki, 2 x 1 - 76/40 11-shiki, 4 x 2 - 13.2/76, 4 x 1 - 7.7/80, 1 DCT |
|
Complement |
118 |
Project history: Former Japanese Ataka, surrendered to Allies in August, 1945 at Shanghai and captured by Chinese.
Modernizations: early 1950s: - 1 x 1 - 120/45, 1 x 2 - 13.2/76, 1 DCT; + 5 x 1 - 25/60 96-shiki
Naval service: No significant events.

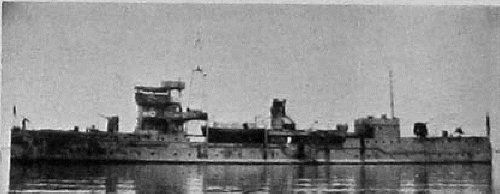

An Tung 1947
