PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Zhuji 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Type 082 | |||||||
| 长安 [Chung'an] | 4422, 2004- 800 | Jiujiang SY | 1984 | 1988 | in service (2019) | ||
| 象山 [Xiangshan] | 4423, 2004- 801 | Jiujiang SY | 1988 | in service (2019) | |||
| 崇明 [Chongming] | 4424, 2004- 802 | Jiujiang SY | 1988 | in service (2019) | |||
| 奉化 [Fenghua] | 4425, 2004- 803 | Jiujiang SY | 1988 | in service (2019) | |||
| Type 082I | |||||||
| 枝江 [Zhijiang] | 806 | Jiujiang SY | 1988 | in service (2019) | |||
| 海晏 [Haiyan] | 807 | Jiujiang SY | 2004-07 | in service (2019) | |||
| 海门 [Haimen] | 816 | Jiujiang SY | 2004-07 | in service (2019) | |||
| 温岭 [Wenling] | 817 | Jiujiang SY | 2004-07 | in service (2019) | |||
| 820 | Jiujiang SY | 2004-07 | in service (2019) | ||||
| 821 | Jiujiang SY | 2004-07 | in service (2019) | ||||
| 822 | Jiujiang SY | 2004-07 | in service (2019) | ||||
| 823 | Jiujiang SY | 2004-07 | in service (2019) | ||||
| 824 | Jiujiang SY | 2004-07 | in service (2019) | ||||
| 华容 [Huarong] | 825 | Jiujiang SY | 1988 | in service (2019) | |||
| 榕江 [Rongjian] | 826 | Jiujiang SY | 1988 | in service (2019) | |||
| 琼海 [Qionghai] | 827 | Jiujiang SY | 1988 | in service (2019) | |||
|
Displacement standard, t |
305 |
|
Displacement full, t |
310 |
|
Length, m |
44.8 |
|
Breadth, m |
6.20 |
|
Draught, m |
2.27 |
|
No of shafts |
2 |
|
Machinery |
2 12-180 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
15.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
500(8) |
|
Armament |
4422: 2 x 2 - 25/80 type 61, mines, type 316 mechanical sweeping gear others: 2 x 2 - 25/80 type 61, mines, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear |
|
Electronic equipment |
type 753 radar, side-scanning minehunting sonar |
|
Complement |
28 |
Project history: Coastal minesweepers, steel-hulled. Can be used as command ship for Type 312 minesweeping drones.
Modernizations: None.
Naval service: No significant events.

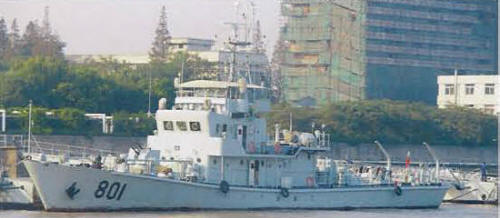

Xiangshan 2008
