PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
XIAOYI minehunters/minesweepers (project 081A, 2012-2014)
Zhangjiagang 2015
Xiaoyi 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Type 081 | |||||||
| 張家港 [Zhangjiagang] | 805 | Qiuxin, Shanghai | 2006 | 6.3.2007 | in service (2019) | ||
| 靖江 [Jingjiang] | 810 | Qiuxin, Shanghai | 9.11.2007 | in service (2019) | |||
| 瀏陽 [Liuyang] | 839 | Qiuxin, Shanghai | 12.11.2006 | 29.7.2007 | in service (2019) | ||
| 瀘溪 [Luxi] | 840 | Qiuxin, Shanghai | 15.5.2006 | 29.7.2007 | in service (2019) | ||
| Type 081A | |||||||
| 孝義 [Xiaoyi] | 841 | Jiangnan, Shanghai | 24.2.2012 | in service (2019) | |||
| 台山 [Taishan] | 842 | Jiangnan, Shanghai | 6.8.2012 | in service (2019) | |||
| 常熟 [Changshou] | 843 | Wuchang, Wuhan | 5.2012 | 13.5.2013 | in service (2019) | ||
| 鹤山 [Heshan] | 844 | Jiangnan, Shanghai | 27.9.2012 | 10.10.2013 | in service (2019) | ||
| 青州 [Qingzhou] | 845 | Jiangnan, Shanghai | 26.1.2014 | in service (2019) | |||
| 禹城 [Yucheng] | 846 | Jiangnan, Shanghai | 9.2013 | 10.10.2014 | in service (2019) | ||
| 仁怀 [Renhuai] | 847 | Wuchang, Wuhan | 2017 | 2018 | in service (2019) | ||
| 宣威 [Sherwin] | 848 | Wuchang, Wuhan | 8.2017 | 1.2019 | in service (2019) | ||
| 无棣 [Wudi] | 849 | Wuchang, Wuhan | 10.12.2017 | 2019 | building (2019) | ||
| 831 | Wuchang, Wuhan | 28.3.2018 | 2019 | building (2019) | |||
|
Displacement standard, t |
|
|
Displacement full, t |
Type 081: 996 Type 081A: 1200 |
|
Length, m |
Type 081: 65.0 Type 081A: 67.8 |
|
Breadth, m |
10.0 |
|
Draught, m |
|
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
Type 081: 1 x 2 - 37/63 type 76, mines, 2 Pinguin B3 minehunting USV, type 316 mechanical, type 317 magnetic, type 318 acoustic minesweeping gear, type 319 infrasonic minesweeping gear Type 081: 1 x 1 - 30/77 PJ-14, mines, 2 Pinguin B3 minehunting USV, type 316 mechanical, type 317 magnetic, type 318 acoustic minesweeping gear, type 319 infrasonic minesweeping gear |
|
Electronic equipment |
radar, side-scanning minehunting sonar |
|
Complement |
Project history: Minehunters, development of Russian project 254.
Modernizations: None.
Naval service: No significant events.

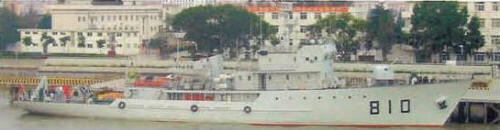

Jingjiang 2008
