PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Haijing 1212 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 辽阳 [Liaoyang], 11.2012- 海监 112 [Haijian 112], 2013- 海监 1212 [Haijing 1212] | 814, 11.2012- 112, 2013- 1212 | Dalian SY | 1984 | 1988 | to Marine Surveillance 11.2012, to Coast Guard 2013, in service (2019) |
|
Displacement standard, t |
2300 |
|
Displacement full, t |
2418 |
|
Length, m |
93.8 |
|
Breadth, m |
14.4 |
|
Draught, m |
3.88 |
|
No of shafts |
2 |
|
Machinery |
4 SEMT-Pielstick 12PA6V-280 diesels |
|
Power, h. p. |
6400 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7000(14) |
|
Armament |
4 x 2 - 37/63 type 76, 300 mines |
| Electronic equipment | radar |
| Complement | 200 |
Project history: Sole minelayer built for PLAN, can also be used as mine countermeasures support ship.
Modernizations: 11.2012: armament was removed
Naval service: In 2012 Liaoyang was transferred to Marine Surveillance and in 2013 to Coast Guard.

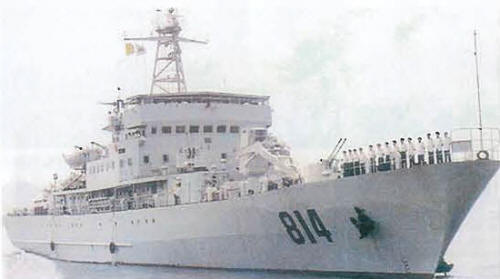

Liaoyang 2002
