PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

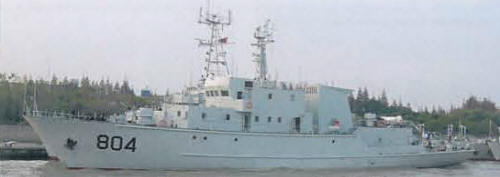

Huoqiu 2015
Kunshan 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 霍邱 [Huoqiu] | 804 | Qiuxin, Shanghai | 4.2004 | 6.2005 | in service (2019) | ||
| 开平 [Kaiping] | 809 | Jiangnan, Changxing | 2014 | 6.5.2015 | in service (2019) | ||
| 容城 [Rongcheng] | 811 | Jiangnan, Changxing | 2015 | 25.1.2016 | in service (2019) | ||
| 东港 [Donggang] | 814 | Jiangnan, Changxing | 2016 | 29.12.2016 | in service (2019) | ||
| 昆山 [Kunshan] | 818 | Jiangnan, Changxing | 2.11.2010 | 25.12.2011 | in service (2019) |
|
Displacement standard, t |
575 |
|
Displacement full, t |
700 |
|
Length, m |
55.0 |
|
Breadth, m |
9.30 |
|
Draught, m |
2.60 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
15.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
804, 818: 2 x 2 - 25/80 type 61, mines, 2 IJM-01 minehunting USV, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear others: 1 x 1 - 30/77 PJ-14, mines, 2 IJM-01 minehunting USV, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear |
|
Electronic equipment |
radar, side-scanning minehunting sonar |
|
Complement |
Project history: Minehunters. Fiberglass hull. Can be used as command ships for Type 529 minesweeping drones.
Modernizations: None.
Naval service: No significant events.
Huoqiu 2008
