PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

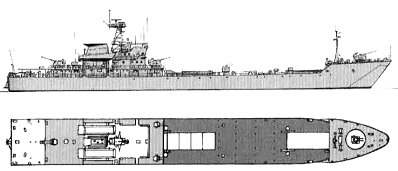

Wufengshan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 云台山 [Yuntaishan] | 927 | Zhonghua SY, Shanghai | 19.10.1977 | 11.1978 | TS 9.2012 | ||
| 五峰山 [Wufengshan] | 928 | Zhonghua SY, Shanghai | 1980 | in service (2019) | |||
| 紫金山 [Zijinshan] | 929 | Zhonghua SY, Shanghai | 1982 | in service (2019) |
|
Displacement standard, t |
3100 |
|
Displacement normal, t |
4170 |
|
Length, m |
120.0 |
|
Breadth, m |
15.3 |
|
Draught, m |
2.90 |
|
No of shafts |
2 |
|
Machinery |
2 12E390 diesels |
|
Power, h. p. |
9600 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(14) |
|
Armament |
2 x 2 - 57/62 type 66, 2 x 2 - 25/80 type 61 |
|
Military load |
2 LCVP, 10 - 11 tanks, 100 - 120 troops or 500 t of cargo |
| Electronic equipment | 2x type 753 radars |
|
Complement |
130 |
Project history: Replacement for ex-USN LSTs, but larger and faster. Foldable bow ramp.
Modernizations: 2000s, all: - 2x type 753 radars; + 2x type 756 radars
Naval service: No significant events.
