PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

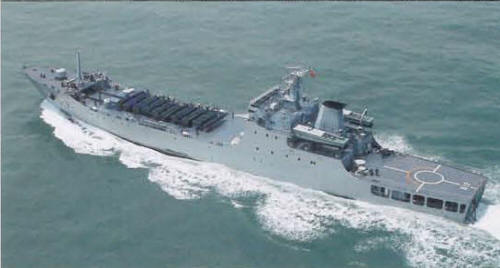

Tianzhushan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Type 072A | |||||||
| 天柱山 [Tianzhushan] | 911 | Dalian SY | 1.7.2003 | 2003 | in service (2019) | ||
| 大青山 [Daqingshan] | 912 | Dalian SY | 1.7.2003 | 2004 | in service (2019) | ||
| 八仙山 [Baxianshan] | 913 | Zhonghua, Shanghai | 23.4.2003 | 10.2003 | in service (2019) | ||
| 华顶山 [Huadingshan] | 992 | Wuchang, Wuhan | 1.12.2003 | 2004 | in service (2019) | ||
| 罗霄山 [Luoxiaoshan] | 993 | Zhonghhua, Shanghai | 18.7.2003 | 1.2004 | in service (2019) | ||
| 戴云山 [Dayunshan] | 994 | Wuchang, Wuhan | 16.12.2003 | 2004 | in service (2019) | ||
| 万羊山 [Wanyangshan] | 995 | Zhonghua SY, Shanghai | 26.11.2003 | 2004 | in service (2019) | ||
| 老铁山 [Laotieshan] | 996 | Dalian SY | 1.1.2004 | 2005 | in service (2019) | ||
| 云雾山 [Yunwushan] | 997 | Wuchang, Wuhan | 2004 | 2005 | in service (2019) | ||
| Type 072B | |||||||
| 大别山 [Dabieshan] | 981 | Wuchang, Wuhan | 29.9.2014 | 23.5.2015 | in service (2019) | ||
| 太行山 [Taihanshan] | 982 | Wuchang, Wuhan | 28.12.2014 | 22.10.2015 | in service (2019) | ||
| 武夷山 [Wuyishan] | 914 | Fujian Baima, Xiabaishi | 8/2013 | 6.2.2015 | 7.3.2016 | in service (2019) | |
| 徂徕山 [Qionglaishan] | 915 | Fujian Baima, Xiabaishi | 6.2015 | 7.3.2016 | in service (2019) | ||
| 天目山 [Tianmushan] | 916 | Wuchang, Wuhan | 28.7.2015 | 12.1.2016 | in service (2019) | ||
| 五台山 [Wutaishan] | 917 | Fujian Baima, Xiabaishi | 2015 | 7.3.2016 | in service (2019) | ||
|
Displacement standard, t |
3770 |
|
Displacement normal, t |
5000 |
|
Length, m |
130.0 |
|
Breadth, m |
16.4 |
|
Draught, m |
3.20 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6V-280MPC diesels |
|
Power, h. p. |
9600 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(14) |
|
Armament |
type 072A: 1 x 2 - 37/63 PJ-76F, helicopter deck type 072B: 1 x 1 - 30/77 PJ-17, helicopter deck |
|
Military load |
2 LCVP, 10 main battle tanks or 500 t of cargo, 250 troops |
| Electronic equipment | 2x type 756, JPT-4G radars |
|
Complement |
120 |
Project history: Enlarged variant of Type 072III. Stern ramp. 2 type 724 LCAC can be taken via stern ramp.
Modernizations: None.
Naval service: No significant events.
Daqingshan 2007
