PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Shengshan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 嵊山 [Shengshan] | 941 | Zhonghua, Shanghai | 12.2003 | 2004 | in service (2019) | ||
| 鲁山 [Lushan] | 942 | Wuhu SY | 2004 | 2004 | in service (2019) | ||
| 蒙山 [Mengshan] | 943 | Qingdao NYd | 2004 | 2004 | in service (2019) | ||
| 玉山 [Yushan] | 944 | Lushun SY | 2004 | 2004 | in service (2019) | ||
| 华山 [Huashan] | 945 | Wuhu SY | 1.7.2003 | 2003 | in service (2019) | ||
| 嵩山 [Songshan] | 946 | Zhonghua, Shanghai | 1.6.2003 | 2004 | in service (2019) | ||
| 庐山 [Lushan] | 947 | Qingdao NYd | 1.8.2003 | 2004 | in service (2019) | ||
| 雪山 [Xueshan] | 948 | Lushun SY | 1.9.2003 | 2004 | in service (2019) | ||
| 衡山 [Hengshan] | 949 | Lushun SY | 1.10.2003 | 2004 | in service (2019) | ||
| 泰山 [Taishan] | 950 | Zhonghua, Shanghai | 3.2004 | 2004 | in service (2019) |
|
Displacement standard, t |
1460 |
|
Displacement normal, t |
1850 |
|
Length, m |
87.0 pp 90.0 oa |
|
Breadth, m |
12.6 |
|
Draught, m |
2.25 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 6PA 6L280 diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(14) |
|
Armament |
1 x 2 - 37/63 type 76A |
|
Military load |
6 main battle tanks or 250 t of cargo, 180 troops |
| Electronic equipment | type 756 radar |
|
Complement |
74 |
Project history: Enlarged variant of Type 073II. Bow and stern ramps. 2 type 724 LCAC can be taken via stern ramp.
Modernizations: None.
Naval service: No significant events.

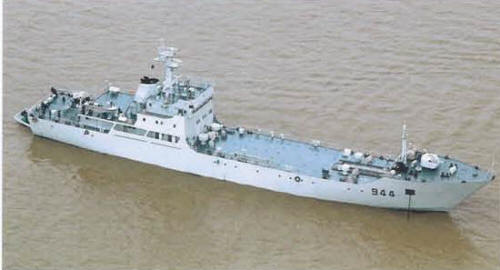

Yushan 2008
