PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
No958 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 957 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 汾河 [Fenhe] | 958 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 959 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 960 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 泉河 [Quanhe] | 961 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 962 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 963 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 964 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 966 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 967 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 968 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 969 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 970 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 971 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 972 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 五指山 [Wuzhishan] | 973 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 莲花山 [Lianhuashan] | 974 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 岚河 [Lanhe] | 975 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 976 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 定军山 [Dingjunshan] | 977 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 978 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 伊河 [Yihe] | 979 | Guangzhou SY | 1979-83 | auxiliary 2010s | |||
| 清河 [Qinghe] | 980 | Guangzhou SY | 1981 | in service (2019) | |||
| 981 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 982 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 983 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 984 | Guangzhou SY | 1979-83 | auxiliary 2010s | ||||
| 985 | Xiamen SY | 1979-83 | auxiliary 2010s | ||||
| 泗河 [Sihe] | 986 | Xiamen SY | 1983 | in service (2019) | |||
| 987 | Xiamen SY | 1979-83 | auxiliary 2010s | ||||
| 988 | Xiamen SY | 1979-83 | auxiliary 2010s |
|
Displacement standard, t |
|
|
Displacement normal, t |
1100 |
|
Length, m |
72.0 |
|
Breadth, m |
13.8 |
|
Draught, m |
2.60 |
|
No of shafts |
2 |
|
Machinery |
2 type 6300Ze diesels + 2 type 12V135Ca-1 diesels |
|
Power, h. p. |
1200 + 480 = 1680 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(14) |
|
Armament |
2 x 2 - 25/80 type 61, 2 x 40 - 122 type 81H RL |
|
Military load |
5 main battle tanks or 8 trucks, 100 troops |
| Electronic equipment | type 756 radar |
|
Complement |
109 |
Project history: Redesigned type 079 with greater displacement, more powerful machinery and strengthened armament.
Modernizations: None.
Naval service: No significant events.

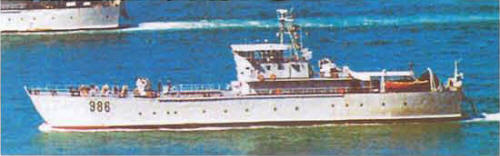

No986 2008
