LINGYANSHAN tank landing ships (project 072II, 1993-1995)

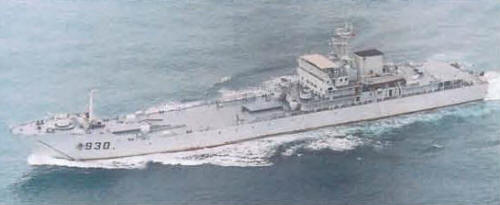

Lingyanshan 2010

Name No Yard No Builder Laid down Launched Comp Fate
灵岩山 [Lingyanshan] 930   Zhonghua SY, Shanghai     1993 in service (2019)
洞庭山 [Dongtingshan] 931   Zhonghua SY, Shanghai   5.1993 6.1994 in service (2019)
贺兰山 [Helanshan] 932   Zhonghua SY, Shanghai     1994 in service (2019)
六盘山 [Liupanshan] 933   Zhonghua SY, Shanghai     1995 in service (2019)



Displacement standard, t

3110

Displacement normal, t

4170

Length, m

119.5

Breadth, m

15.6

Draught, m

2.90

No of shafts

2

Machinery

2 SEMT-Pielstick 12PA6V-280MPC diesels

Power, h. p.

9600

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts) 3000(14)

Armament

1 x 2 - 57/62 type 66, 3 x 2 - 37/63 type 76

Military load

2 LCVP, 10 main battle tanks or 500 t of cargo, 200 troops

Electronic equipment 2x type 756 radars

Complement

109

Project history: Deeply modified type 072 LSTs with small flight deck for helicopter. Bow and stern ramps.

Modernizations: None.

Naval service: No significant events.

Lingyanshan 2001
