PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

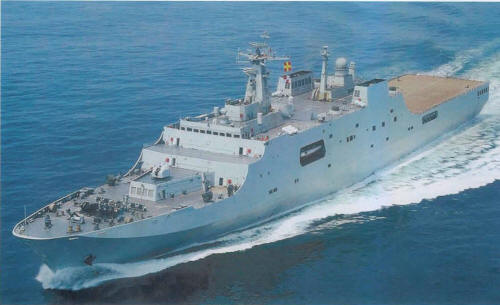

Kunlunshan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 昆仑山 [Kunlunshan] | 998 | Hudong-Zhonghua, Shanghai | 7/2006 | 21.12.2006 | 30.11.2007 | in service (2019) | |
| 井冈山 [Jinggangshan] | 999 | Hudong-Zhonghua, Shanghai | 2009 | 18.11.2010 | 30.10.2011 | in service (2019) | |
| 长白山 [Changbaishan] | 989 | Hudong-Zhonghua, Shanghai | 2010 | 26.9.2011 | 23.9.2012 | in service (2019) | |
| 沂蒙山 [Yimengshan] | 988 | Hudong-Zhonghua, Shanghai | 2013 | 22.1.2015 | 1.2.2016 | in service (2019) | |
| 龙虎山 [Lungfushan] | 980 | Hudong-Zhonghua, Shanghai | 2015 | 15.6.2017 | 12.9.2018 | in service (2019) | |
| 五指山 [Wuzhishan] | 987 | Hudong-Zhonghua, Shanghai | 2016 | 20.1.2018 | 12.1.2019 | in service (2019) | |
| 武当山 [Wudangshan] | 986 | Hudong-Zhonghua, Shanghai | 2017 | 28.12.2018 | 2020 | building (2019) | |
| viii | Hudong-Zhonghua, Shanghai | 2018 | 2019 | 2021 | building (2019) |
|
Displacement standard, t |
12300 |
|
Displacement normal, t |
17600, 19000 ballasted |
|
Length, m |
210.0 |
|
Breadth, m |
28.0 |
|
Draught, m |
7.00 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PC 2.6V400 diesels |
|
Power, h. p. |
48000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 6000(18) |
|
Armament |
1 x 1 - 76/59 PJ-26, 4 x 6 - 30/54 PJ-13, 4 x 1 - 14.5/93, 2 helicopters (Z-8) |
|
Military load |
4 LCAC or 4 LCM, 2 LCVP, 20 tanks or 75 vehicles, 500-800 troops |
| Electronic equipment | type 360, type 364, 2x NR 2000, type 344, 2x type 347G radars, 4x type 726 decoy RL |
|
Complement |
175 |
Project history: First large amphibious ships of the Chinese Navy. Four LCAC or LCM-class craft can be carried on the well deck. Helicopter deck (50.0x30.0m) had 4 spots for landing/take-off and handling of Z-8 size helicopters. Two helicopters can be carried in the hangar (18.5x23.0x8.0m). 2 LCVP are carried on davits. There are reserve spaces for FL-3000N SAM. Ships have a large hospital (450m² total area).
Modernizations: None.
Naval service: No significant events.

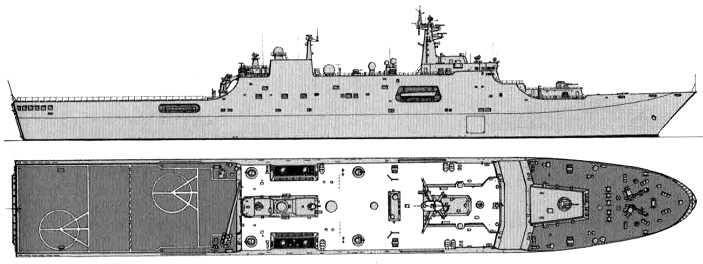

Kunlunshan 2007
