PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Haiyangshan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 峨眉山 [Emeishan] | 991 | Zhonghua SY, Shanghai | 9.1991 | 9.1992 | in service (2019) | ||
| 丹霞山 [Danxiashan] | 934 | Zhonghua SY, Shanghai | 4.1995 | 9.1995 | in service (2019) | ||
| 雪峰山 [Xuefengshan] | 935 | Zhonghua SY, Shanghai | 7.1995 | 12.1995 | in service (2019) | ||
| 海洋山 [Haiyangshan] | 936 | Zhonghua SY, Shanghai | 12.1995 | 5.1996 | in service (2019) | ||
| 青城山 [Qingchengshan] | 937 | Zhonghua SY, Shanghai | 4.1996 | 8.1996 | in service (2019) | ||
| 雁荡山 [Yandangshan] | 908 | Zhonghua SY, Shanghai | 8.1996 | 1.1997 | in service (2019) | ||
| 九华山 [Jiuhuashan] | 909 | Zhonghua SY, Shanghai | 11.1999 | 4.2000 | in service (2019) | ||
| 黄岗山 [Huanggangshan] | 910 | Zhonghua SY, Shanghai | 5.2000 | 12.2001 | in service (2019) | ||
| 普陀山 [Putuoshan] | 939 | Zhonghua SY, Shanghai | 4.2001 | 8.2001 | in service (2019) | ||
| 天台山 [Tiantaishan] | 940 | Zhonghua SY, Shanghai | 12.2001 | 4.2002 | in service (2019) |
|
Displacement standard, t |
3430 |
|
Displacement normal, t |
4800 |
|
Length, m |
119.5 |
|
Breadth, m |
16.4 |
|
Draught, m |
2.80 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6V-280MPC diesels |
|
Power, h. p. |
9600 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(14) |
|
Armament |
3 x 2 - 37/63 type 76, 2 x 40 - 122 type 81H rocket launchers, helicopter deck |
|
Military load |
2 LCVP, 10 main battle tanks or 500 t of cargo, 250 troops |
| Electronic equipment | 2x type 756, JPT-4G radars |
|
Complement |
104 |
Project history: Type 072II with enhanced helicopter deck. Stern ramp, two cranes installed fwd of superstructure. 2 type 724 LCAC can be taken via stern ramp.
Modernizations: None.
Naval service: No significant events.

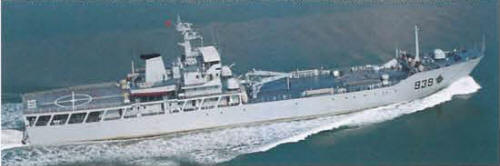

Putuoshan 2007
