PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Nanyun 830 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 南运 830 [Nanyun 830], 2012- 海监... [Haijian...] | 830 | Guangzhou SY | 1980 | Marine Surveillance patrol ship 2012, in service (2019) | |||
| 南运 831 [Nanyun 831] | 831 | Guangzhou SY | 1980s | hospital vessel 2016 | |||
| 南运 836 [Nanyun 836] | 836 | Guangzhou SY | 1980s | hospital vessel 2016 |
|
Displacement standard, t |
|
|
Displacement normal, t |
2150 |
|
Length, m |
86.0 |
|
Breadth, m |
13.4 |
|
Draught, m |
3.90 |
|
No of shafts |
3 |
|
Machinery |
3 SKL 8NVD48A-2U diesels |
|
Power, h. p. |
3960 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2500(11) |
|
Armament |
4 x 2 - 14.5/93 |
|
Military load |
4 lifeboats used as landing craft, 400 troops, 350 t of cargo |
| Electronic equipment | 2x type 753 radars |
|
Complement |
59 |
Project history: Troop transports for South Sea Fleet, other sisterships served as cargo carriers and hospital ships.
Modernizations: None.
Naval service: No significant events.

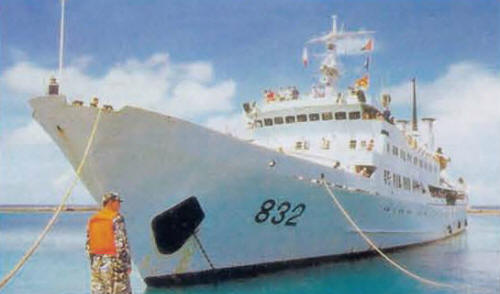

Nanyun 832 2008
