PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Type 068 landing craft (1967-1997)
Type 069 landing craft (1967-1997)

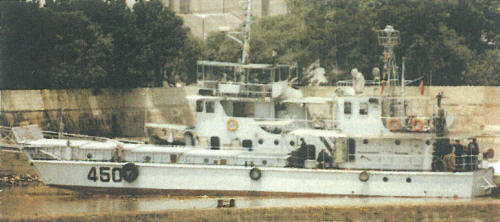

4507 2000
|
Names |
40+ craft No 450 No 454 No 2350 No 3201, 3202 No 3225-3228 No 3241 No 3307 No 3314 No 3319 No 5591 G2325 No 4507, 4508 Nos... |
|
Builders |
|
|
Commissioned |
1967 - 1997: 40+ |
|
Losses |
none |
|
Transfers |
Bangladesh: 6 craft Tanzania: 2 craft Cambodia, 2007: 1 craft |
|
Discarding |
2016-18: ~20 craft in service (2019): ~ 20 craft |
|
Displacement standard, t |
58 |
|
Displacement full, t |
85 |
|
Length, m |
24.8 |
|
Breadth, m |
5.20 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 12V150C diesels |
|
Power, h. p. |
600 |
|
Max speed, kts |
11.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 450(11.5) |
|
Armament |
2 x 2 - 14.5/93 |
|
Electronic equipment |
none |
| Military load |
50 t of cargo or 150 troops |
| Complement | 12 |
Project history: Chinese-designed LCM. Type 068 used primarily for cargo transport, and Type 069 for troop transport.
Modernizations:
None.Naval service: No significant events.
4507 2000

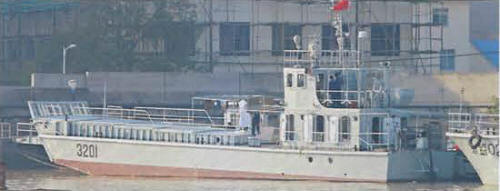

3201 2008
