PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
No3320 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 3320 | Jiangnan SY | 2008 | 2011 | in service (2019) | |||
| 3321 | Jiangnan SY | 2013 | in service (2019) | ||||
| 3322 | Jiangnan SY | 2013 | in service (2019) | ||||
| 3330 | Jiangnan SY | 2016 | in service (2019) | ||||
| 3331 | Jiangnan SY | 2016 | in service (2019) | ||||
| 3332 | Jiangnan SY | 2016 | in service (2019) | ||||
| 3236 | Jiangnan SY | 2018 | in service (2019) | ||||
| 3237 | Jiangnan SY | 2018 | in service (2019) | ||||
| 3238 | Jiangnan SY | 2018 | in service (2019) | ||||
| 3239 | Jiangnan SY | 2018 | in service (2019) |
|
Displacement standard, t |
120 |
|
Displacement normal, t |
180 |
|
Length, m |
28.8 |
|
Breadth, m |
7.20 |
|
Draught, m |
- |
|
No of shafts |
2 air propellers / 2 air propellers for lift |
|
Machinery |
4 Zaria-Mashproekt UGT6000 gas turbines |
|
Power, h. p. |
10000 |
|
Max speed, kts |
40 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
200(35) |
|
Armament |
1 x 2- 14.5/93 |
|
Military load |
80 troops or 2 IFVs or 1 tank |
|
Electronic equipment |
radar |
|
Complement |
6 |
Project history: Chinese version of USN LCAC conception, intended for service on board of Type 071 LPDs.
Modernizations: None.
Naval service: No significant events.

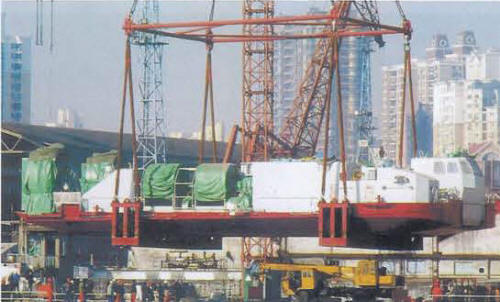

No3320 2008
