PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
No3128 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 3128 | Qingdao NYd | 9.2003 | 2004 | in service (2019) | |||
| 3129 | Qingdao NYd | 2003 | 2004 | in service (2019) | |||
| 3232 | Shanghai SY International | 9.2003 | 2005 | in service (2019) | |||
| 3233 | Qingdao NYd | 2004 | 2004 | in service (2019) | |||
| 3234 | Qingdao NYd | 2004 | 2004 | in service (2019) | |||
| 3235 | Qingdao NYd | 2004 | 2005 | in service (2019) | |||
| 3302 | Dinghai NYd | 2004 | 2005 | in service (2019) | |||
| 3315 | Zhanjiang SY International | 2003 | 2004 | in service (2019) | |||
| 3316 | Dinghai NYd | 9.2003 | 2004 | in service (2019) | |||
| 3317 | Dinghai NYd | 11.2003 | 2004 | in service (2019) | |||
| 3318 | Dinghai NYd | 1.2004 | 2004 | in service (2019) |
|
Displacement standard, t |
900 |
|
Displacement normal, t |
1200 |
|
Length, m |
62.0 pp 64.0 oa |
|
Breadth, m |
11.0 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 TBD2 34V6 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(14) |
|
Armament |
2 x 2 - 14.5/93 |
|
Military load |
6 main battle tanks or 250 t of cargo, 70 troops |
| Electronic equipment | type 756 radar |
|
Complement |
27 |
Project history: Landing ships with unusual architecture, catamaran hull with superstructure on starboard side. Existing of No3302 is presumable.
Modernizations: None.
Naval service: No significant events.

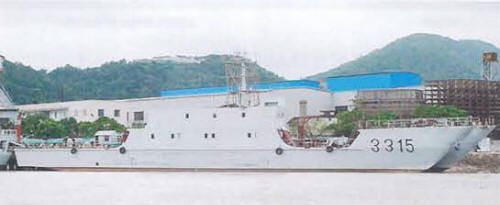

No3315 2003
