PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
No3111 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 478, later- 3111 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 479, later- 3112 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 480, later- 3113 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 481, later- 3115 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 482, later- 3116 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 483, later- 3117 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 3229 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 3231 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 3244 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 7593 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 7594 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 7595 | Wuhu SY | 1995-00 | in service (2019) | ||||
| 3357 | Xijiang SY | 2016 | 10.2.2017 | in service (2019) | |||
| 3358 | Xijiang SY | 2016 | 2018 | in service (2019) | |||
| 3359 | Xijiang SY | 2016 | 2019 | building (2019) |
|
Displacement standard, t |
486 |
|
Displacement normal, t |
800 |
|
Length, m |
58.4 |
|
Breadth, m |
10.4 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 8L 20/27 diesels |
|
Power, h. p. |
4900 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(12) |
|
Armament |
1 x 2 - 25/80 type 61, 2 x 2 - 14.5/93 3357-3359: 1 x 1 - 30/77 H/PJ-14, 2 x 1 - 12.7/79 |
|
Military load |
2 main battle tanks, 200 troops |
| Electronic equipment | radar |
|
Complement |
56 |
Project history: Replacement of type 079 with simplified construction for mass-production, with flat bottom. They became really redesigned and enlarged type 271.
Modernizations: None.
Naval service: No significant events.

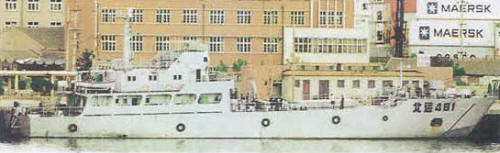

No481 1999
