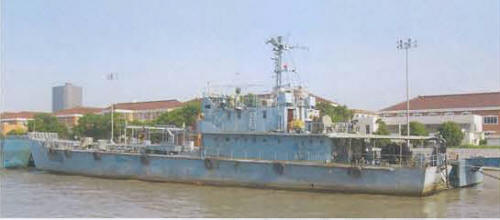

PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
No481 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 481 | Shanghai | 1989-90 | auxiliary 2018 | ||||
| 3703 | Shanghai | 1989-90 | auxiliary 2018 | ||||
| 6562 | Shanghai | 1989-90 | auxiliary 2018 | ||||
| 7559 | Shanghai | 1989-90 | auxiliary 2018 | ||||
| v | Shanghai | 1989-90 | auxiliary 2018 |
|
Displacement standard, t |
614 |
|
Displacement normal, t |
800 |
|
Length, m |
56.5 |
|
Breadth, m |
10.4 |
|
Draught, m |
2.28 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 8L20/27 diesels |
|
Power, h. p. |
2284 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(10) |
|
Armament |
2 x 2 - 14.5/93 |
|
Military load |
100 - 150 t of cargo or 200 troops or 3 main battle tanks + 70 troops |
| Electronic equipment | type 756 radar |
|
Complement |
56 |
Project history: Modification of Type 271III LCU with displacement increased by a third, becoming LCM.
Modernizations: None.
Naval service: No significant events.
2008
