PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

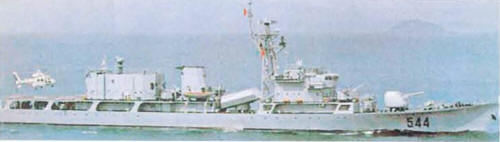

Siping 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 四平 [Siping], 7.2010- 旅顺 [Lushun] | 544 | Hudong SY, Shanghai | 29.9.1985 | 24.12.1985 | TS 2007-7/2010, in service (2019) |
|
Displacement standard, t |
1600 |
|
Displacement full, t |
1820 |
|
Length, m |
103.2 |
|
Breadth, m |
10.2 |
|
Draught, m |
3.05 hull |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6 280BTC diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
25.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(15) |
|
Armament |
1 x 2 Hai Ying-2A SSM (2 C-201A), 1 x 1 - 100/55 Compact T100C, 4 x 2 - 37/63 type 76, 2 x 3 - 324 ILAS-3 TT, 2 x 5 type 81 ASWRL, 1 helicopter (Z-9A) |
|
Sensors |
type 756, type 354, type 352C, type 341 radars, SJD-7 sonar, RWD-8 ECM suite, 2x Mk 36 SRBOC decoy RL |
|
Complement |
185 |
Project history: This was the first Chinese warship to be built with helicopter capability, with a hangar and pad aft for one Zhi-9 helicopter (a Chinese-built version of the French SA-365N Dauphin), replacing the after gun mount and two SSM launchers. Also equipped with a French main gun and ASW torpedoes and US decoy launchers.
Modernizations: mid-1990s: - type 352C radar; + type 348 radar
Naval service: No significant events.
Siping 2003
