PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

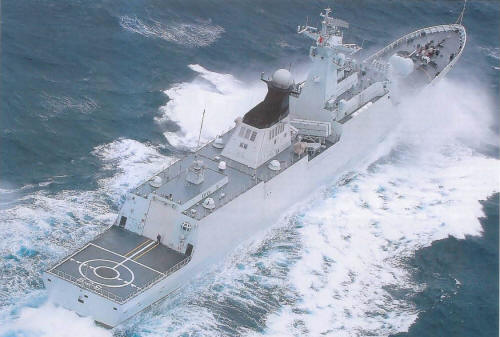

Ma'anshan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 马鞍山 [Ma'anshan] | 525 | Hudong, Shanghai | 12.2001 | 11.9.2003 | 28.2.2005 | in service (2019) | |
| 温州 [Wenzhou] | 526 | Huangpu, Guangzhou | 2.2002 | 6.11.2003 | 27.9.2005 | in service (2019) |
|
Displacement standard, t |
3450 |
|
Displacement full, t |
3850 |
|
Length, m |
125.0 pp 132.0 oa |
|
Breadth, m |
15.0 |
|
Draught, m |
5.00 |
|
No of shafts |
2 |
|
Machinery |
4 SEMT-Pielstick 16PA 6V280STC diesels |
|
Power, h. p. |
28200 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3800(18) |
|
Armament |
2 x 4 Ying Ji-83 SSM (8 C-803), 1 x 8 HQ-7 SAM (16 HQ-7), 1 x 1 - 100/56 PJ-87, 4 x 6 - 30/54 AK-630, 2 x 3 - 324 TT, 2 x 6 type 87 ASWRL, 1 helicopter (Z-9A/C) |
|
Sensors |
2x Decca RM 1290A/D, type 360, type 364, type 344, type 345, 2x type 347G, type 345 radars, OFD-630 e/o sensor, MGK-335, towed array sonars, HZ-100 ECM suite (SR-210, type 984/985, type 922-1 units), 2x PJ-46 decoy RL, ZKJ-4B/6 CCS |
|
Complement |
168 |
Project history: Type 054. Next generation of Chinese FFG design incorporating numerous signature reduction features.
Modernizations: None.
Naval service: No significant events.
Wenzhou 2007
