PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

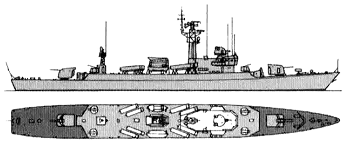

Huangshi 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 黄石 [Huangshi] | 535 | Hudong SY, Shanghai | 28.12.1985 | 15.12.1986 | stricken 4.2013, to Bangladesh (আবু বকর [Abu Bakr]) | ||
| 芜湖 [Wuhu] | 536 | Hudong SY, Shanghai | 9.8.1986 | 29.12.1987 | stricken 4.2013, to Bangladesh (আলী হাইডের [Ali Haider]) | ||
| 舟山 [Zhoushan], 7.2006- 沧州 [Cangzhou] | 537 | Hudong SY, Shanghai | 30.10.1989 | 17.11.1990 | in service (2019) |
|
Displacement standard, t |
1655 |
|
Displacement full, t |
1960 |
|
Length, m |
103.2 |
|
Breadth, m |
10.8 |
|
Draught, m |
3.10 hull |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6 280BTC diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(18) |
|
Armament |
535, 536: 2 x 4 Ying Ji-1 SSM (8 C-801), 2 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 2 DCT 537: 2 x 4 Ying Ji-2 SSM (8 C-802), 2 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 2 DCT |
|
Sensors |
535, 536: type 756, type 354, type 352C, type 341, type 343 radars, SJD-5, SJC-1B sonars, type 923, type 981, RWD-8 ECM suites, 2x type 945 decoy RL, ZKJ-3A CCS 537: type 756, type 354, type 352C, type 341, type 343, type 517A radars, SJD-5, SJC-1B sonars, type 923, type 981, RWD-8 ECM suites, 2x type 945 decoy RL, ZKJ-3A CCS |
|
Complement |
168 |
Project history: Improved version of Type 053H1, with a full shelter deck amidships supporting four twin YJ-1 SSM launchers They carry the same twin autoloading 100mm mounts as their predecessors.
Modernizations: None.
Naval service: No significant events.

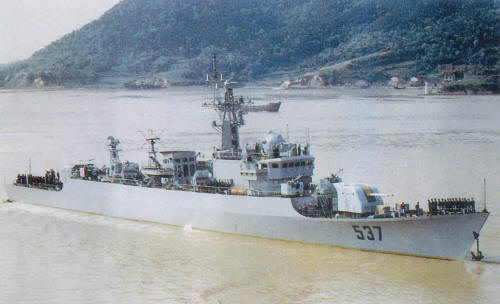

Zhoushan 2002

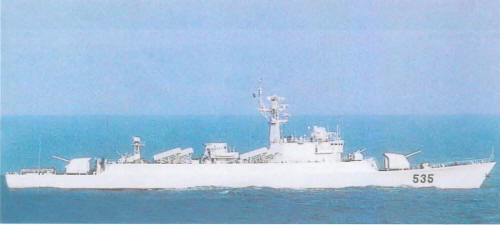

Huangshi 2001
