PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Chengdu 1965
Chengdu 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 昆明 [Kunming] | 205, 1980- 505 | Hudong, Shanghai | 15.4.1955 | 28.4.1956 | 30.5.1957 | stricken 4.1992 | |
| 成都 [Chengdu] | 206, 1980- 506 | Hudong, Shanghai | 8.1955 | 26.9.1956 | 1957 | stricken 1994 | |
| 贵阳 [Guiyang], 1980- 凭祥 [Pinghsiang] | 207, 1980- 507 | Hudong, Shanghai | 9.1955 | 1957 | 1958 | stricken 1995 | |
| 衡阳 [Henyang], 1980- 西昌 [Sichang] | 208, 1980- 508 | Hudong, Shanghai | 3.1956 | 1957 | 6.1958 | stricken 1993 |
|
Displacement standard, t |
1050 |
|
Displacement normal, t |
1337 |
|
Length, m |
90.9 |
|
Breadth, m |
10.2 |
|
Draught, m |
2.90 |
|
No of shafts |
2 |
|
Machinery |
2 TV-9 geared steam turbines sets, 2 KVG-57/28 boilers |
|
Power, h. p. |
20000 |
|
Max speed, kts |
29 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 1000(14.5) |
|
Armament |
3 x 1 - 100/56 B-34USMA, 2 x 2 - 37/70 V-11M, 1 x 2 - 533 TT, 2 x 24 MBU-200 ASWRL, 4 DCT, 2 DCR |
| Sensors | Giuys-1M4, Lin', Don, Yakor' radars, Pegas-2M sonar, Bizan'-4 ECM suite |
|
Complement |
168 |
Project history: These ships were assembled from Soviet components in Chinese shipyards and were of the Soviet Project 50.
Modernizations: 1971-1973, all: - 1 x 2 - 533 TT; + 1 x 2 Hai Ying-2 SSM (2 HY-2)
1978-1979, all: + 2 x 2 - 14.5/93
Naval service: No significant events.

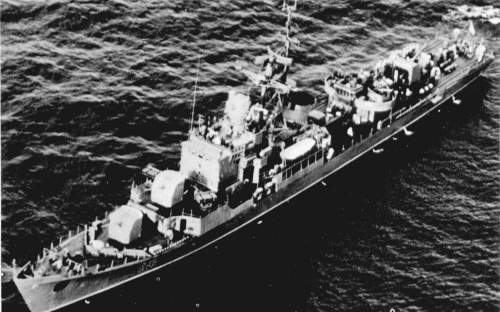

Chengdu 1971
