PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

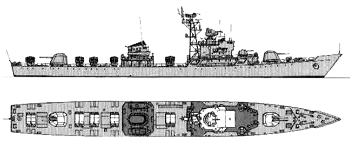

Changsha 1980

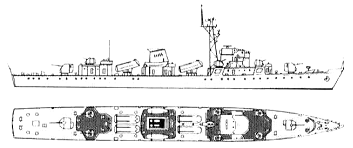

Jiujiang 2010
Haijing 44102 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 常德 [Changde], 3.2007- 舷號 1002 [Haijing 1002], 2015- 舷號 44102 [Haijing 44102] | 509, 3.2007- 1002, later- 44102 | Hudong SY, Shanghai | 29.4.1979 | 30.9.1979 | to Coast Guard 3.2007, stricken 6.2016 | ||
| 绍兴 [Shaoxing], 3.2007- 舷號 1003 [Haijing 1003], 2015- 舷號 46103 [Haijing 46103] | 510, 3.2007- 1003, later- 46103 | Hudong SY, Shanghai | 26.1.1979 | 30.6.1979 | to Coast Guard 3.2007, stricken 10.2016 | ||
| 南通 [Nantong] | 511 | Hudong SY, Shanghai | 9.11.1976 | 31.3.1977 | stricken 8.2012 | ||
| 无锡 [Wuxi] | 512 | Hudong SY, Shanghai | 27.7.1977 | 14.12.1978 | stricken 8.2012 | ||
| 淮陰 [Huaiyin], 12.2006- 淮安 [Huai'an] | 513 | Hudong SY, Shanghai | 19.4.1977 | 31.12.1977 | stricken 5.2013 | ||
| 镇江 [Zhenjiang] | 514 | Hudong SY, Shanghai | 11.2.1978 | 25.1.1979 | target 5.2013 | ||
| 厦门 [Xiamen] | 515 | Hudong SY, Shanghai | 27.10.1975 | 31.12.1975 | museum ship 8.2013 | ||
| 長沙 [Changsha], 8.1981- 九江 [Jiujiang] | 516 | Hudong SY, Shanghai | 28.6.1975 | 31.12.1975 | stricken 8.2017 | ||
| 南平 [Nanping] | 517 | Hudong SY, Shanghai | 16.4.1976 | 31.10.1977 | TS 2012, in service (2019) | ||
| 吉安 [Ji'an] | 518 | Hudong SY, Shanghai | 10.7.1978 | 31.3.1979 | TS 2012, stricken 2016 | ||
| 长治 [Changzhi] | 519 | Hudong SY, Shanghai | 24.7.1979 | 16.12.1979 | test ship 2012, stricken 2014 | ||
| 开封 [Kaifeng] | 520 | Hudong SY, Shanghai | 7.10.1979 | 28.6.1980 | wrecked 1985, stricken 1993 | ||
| 茂名 [Maoming] | 551 | Hudong SY, Shanghai | 10.5.1980 | 30.9.1980 | stricken 10.2012 | ||
| 宜宾 [Yibin] | 552 | Hudong SY, Shanghai | 17.7.1980 | 19.12.1980 | stricken 10.2012 |
|
Displacement standard, t |
1425 |
|
Displacement full, t |
1702 |
|
Length, m |
103.2 |
|
Breadth, m |
10.2 |
|
Draught, m |
3.05 hull |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6 280BTC diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
25.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(18) |
|
Armament |
509-514, 517-519: 2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 1 - 100/56 B-34USMA, 6 x 2 - 37/63 type 74, 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines 515, 516: 2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 1 - 100/56 B-34USMA, 6 x 2 - 37/63 type 74, 4 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines 520, 551, 552: 2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 1 - 100/56 B-34USMA, 6 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines |
| Sensors | type 756, type 354, type 352C radars, EH-5 sonar, RWD-8 ECM suite |
|
Complement |
190 |
Project history: SSM-armed variant of Type 053K.
Modernizations: 2004, Jiujiang: - 2 x 2 Hai Ying-2 SSM, 2 x 1 - 100/56; + 2 x 2 - 100/56 type 99, 5 x 50 - 300 WS-1B rocket launchers
7/2007, Haijing 1002, 1003: superstructure was rebuilt, armament consisted of 1 x 1 - 37/63, 2 x 2 - 14.5/89, 2 patrol boats, sensors consisted of 2 navigation radars
Naval service: No significant events.

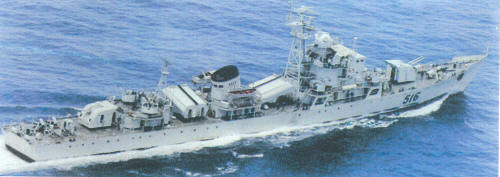

Jiujiang 1999

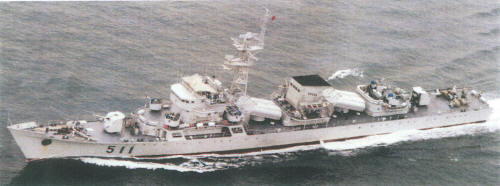

Nantong 2000

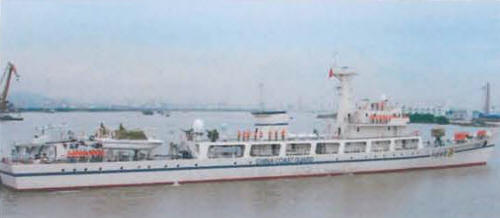

Haijing 1002 2007
