PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

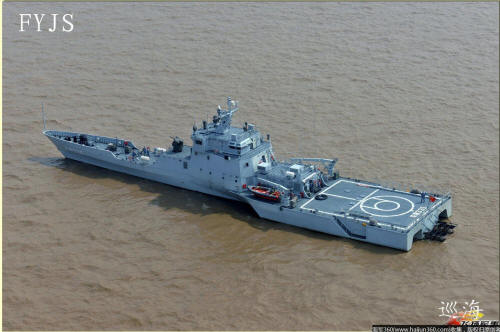

Beijiu 143 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 北救143 [Beijiu 143] | 143 | Guijiang SC, Wuzhou | 2011 | 2012 | in service (2019) | ||
| 东救335 [Dongjiu 335] | 335 | Guijiang SC, Wuzhou | 2012 | 2013 | in service (2019) | ||
| [... 511] | 511 | Guijiang SC, Wuzhou | 5.10.2012 | 1.2013 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
550 |
|
Length, m |
60.0 |
|
Breadth, m |
|
|
Draught, m |
|
|
No of shafts |
2 waterjets |
|
Machinery |
2 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 30/77 PJ-14, helicopter deck |
|
Sensors |
2x nav. radars |
|
Complement |
Project history: Design inspired by British Triton. Trimaran hull. Ships are officially classed as rescue ships but can be used as very effective seagoing fast patrols.
Modernizations: None.
Naval service: No significant events.
Dongju 335
© Ivan Gogin, 2017-19
