PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
ZHUHAI destroyer (1991)

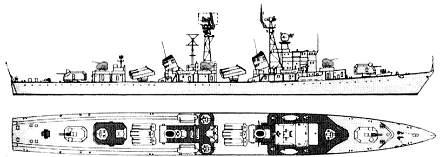

Zhanjiang 1990
Zhuhai 2000

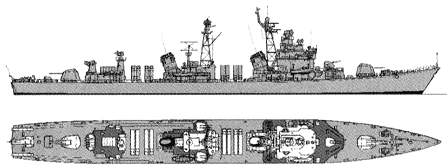

Zhajiang 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 湛江 [Zhanjiang] | 165 | Dalian SY | 1986 | 1.8.1988 | 30.12.1989 | in service (2019) | |
| 珠海 [Zhuhai] | 166 | Dalian SY | 1988 | 18.10.1990 | 21.11.1991 | in service (2019) |
|
Displacement standard, t |
3670 |
|
Displacement full, t |
3960 |
|
Length, m |
165: 127.5 pp 132.0 oa 166: 128.6 oa |
|
Breadth, m |
12.8 |
|
Draught, m |
165: 4.39 hull 5.30 sonar 166: 4.66 hull |
|
No of shafts |
2 |
|
Machinery |
2 sets geared steam turbines, 4 boilers |
|
Power, h. p. |
72000 |
|
Max speed, kts |
35 |
|
Fuel, t |
oil |
|
Endurance, nm(kts) |
2970(18) |
|
Armament |
165: 2 x 3 Hai Ying-1J SSM (6 HY-1J), 2 x 2 - 130/58 type 76, 4 x 2 - 37/63 type 76A, 2 x 2 - 25/80 type 61, 2 x 12 FQF-2500 (type 75) ASWRL, 4 DCT, 38 mines or 2 DCR 166: 4 x 2 Ying Ji-8 SSM (8 YJ-8 (C-801)), 2 x 2 - 130/58 type 76, 4 x 2 - 37/63 type 76A, 2 x 2 - 25/80 type 61, 2 x 3 - 324 TT, 2 x 12 FQF-2500 (type 75) ASWRL, 2 DCT, 38 mines or 2 DCR |
|
Electronic equipment |
165: type 354, type 381, type 515, type 352-III, type 343, type 347, type 756 radars, SJD-2, SJD-4 sonars, type 825, RW-23-1 ECM suites, ZKJ-4 CCS 166: type 354, type 381, type 517, type 344, EFR-1, type 756 radars, SJD-7 sonar suite, type 825, RW-23-1 ECM suites, ZKJ-3 CCS |
|
Complement |
165: 302 166: 280 |
Project history: Types 051G1 (Zhanjiang) and 051G2 (Zhuhai). Really type 051 with new electronics, mainly new type 381 radar, new sonar, new ECM and combat control systems.
Modernizations: 2003, Zhanjiang: have armament and sensors consisted of: 4 x 4 Ying Ji-1 SSM (16 C-801), 1 x 8 HQ-7 SAM (16 HQ-7), 2 x 2 - 100/56 type 99, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 x 12 FQF-2500 (type 75) ASWRL, 38 mines; type 756, type 362, type 381, type 517, type 344, type 345, 2x type 347G radars, SJD-7 sonar suite, type 825 (DR-2000S + Alligator), RW-23-1 ECM suites, 2 decoy RL, ZKJ-4 CCS
2003, Zhuhai: have armament and sensors consisted of: 4 x 4 Ying Ji-83 SSM (16 C-803), 1 x 8 HQ-7 SAM (16 HQ-7), 2 x 2 - 100/56 type 99, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 x 12 FQF-2500 (type 75) ASWRL, 38 mines; type 756, type 362, type 381, type 517, type 344, type 345, 2x type 347G radars, SJD-7 sonar suite, type 825 (DR-2000S + Alligator), RW-23-1 ECM suites, 2 decoy RL, ZKJ-3 CCS
Naval service: No significant events.

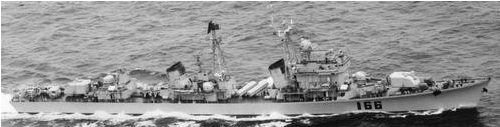

Zhuhai 1994
